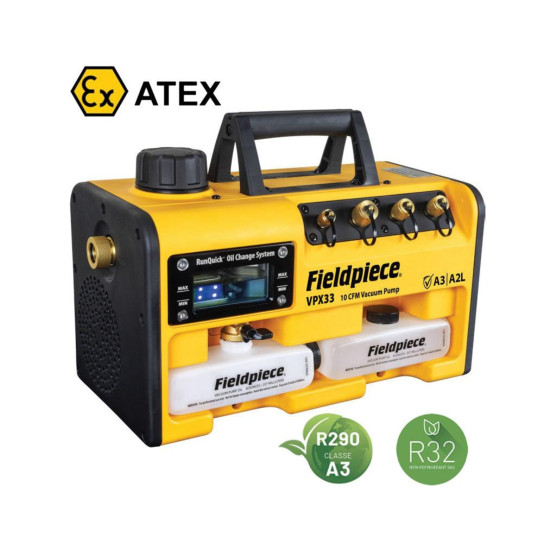

VACUUM PUMP VPX33EU 10CFM (280lt/min) 3/4Hp 15mic 230/110VAC DC Inverter ATEX (A3) FIELDPIECE USA

Fieldpiece offers high performance ATEX Certified 10 CFM vacuum pumps that cut evacuation time.

• ATEX Certified to work with A3 refrigerants;
• RunQuick® Oil Change System to change oil in less than 20 seconds;
• Lightweight and portable design of only 12 kg & down to 15 microns ultimate vacuum;
• 4 in-line ports for easy hose connection;
• A3 and A2L compatible.

Our 10CFM ATEX Certified Vacuum Pump has been designed to easily and quickly perform a vacuum on a system.

Five reasons why you need our VPX33


1. Work safely with our ATEX Certified pump

Do you work with A3 refrigerants? No need to worry! Our VPX33 vacuum pump is ATEX Certified, ensuring safe operation in potentially explosive environments. This rating confirms that the VPX33 is compatible with A3 refrigerants, allowing you to work confidently.

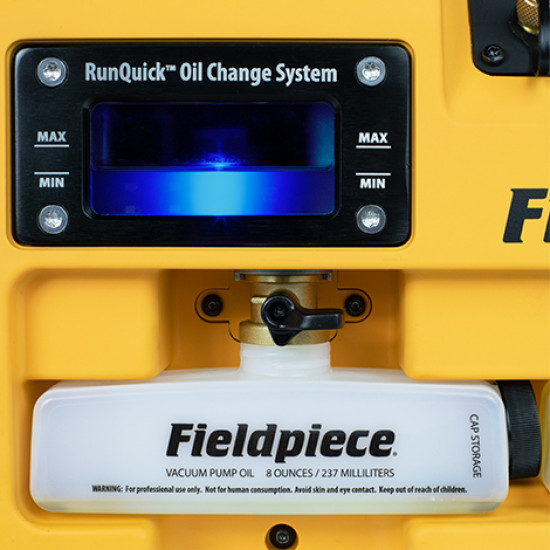

2. Do your job faster with our RunQuick® Oil Change System

Clean oil matters. You–the technician– understand the importance of clean oil, but also the hassle that task usually comes with. With our RunQuick® Oil Change System, we’ve taken away the inconvenience of changing the oil and we have made it possible for you to switch the oil in your vacuum pump in 20 seconds or less without powering down or losing vacuum. And, through the large oil reservoir, you can easily view the condition of your oil in an instant. No mess, quick change, fast vacuum. That’s our VPX33.

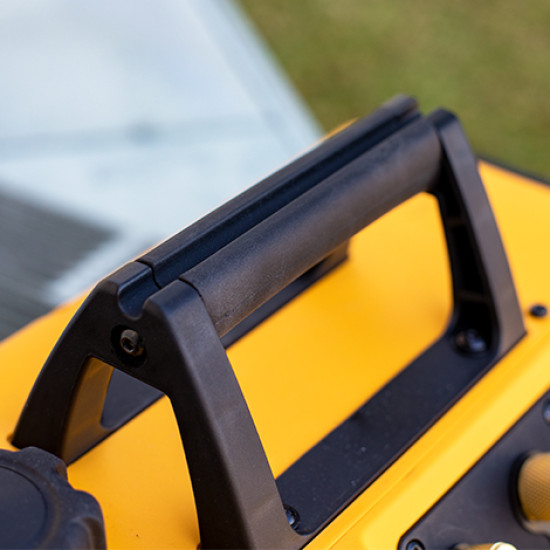

3. Lightweight and portable powerhouse

Designed to handle the demands of any job, the VPX33 is light enough to be carried anywhere on site. With a weight of only 12 kg, this Fieldpiece vacuum pump is light but powerful - with the ability to achieve 15 microns ultimate vacuum and is compatible with A3 and A2L refrigerants!

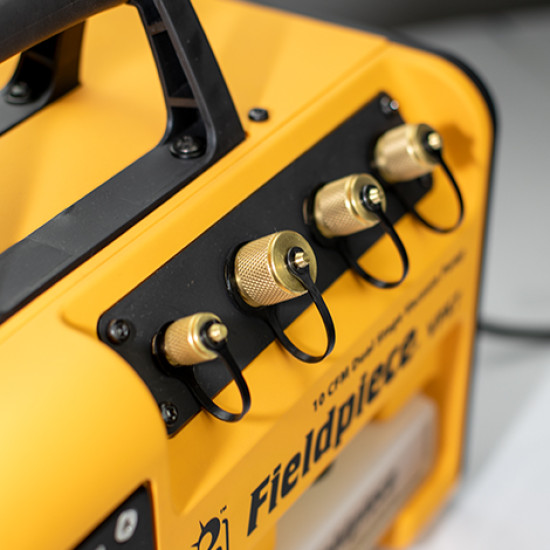

4. Four in-line ports

Four in-line ports to make sure you have plenty of room to easily run multiple hoses. Because of the strategically placed ports, tangled hoses and clutter around your vacuum pump is in the past. Work efficiently with our VPX33 and easily connect hoses of ¼”, ⅜”, and ½”.

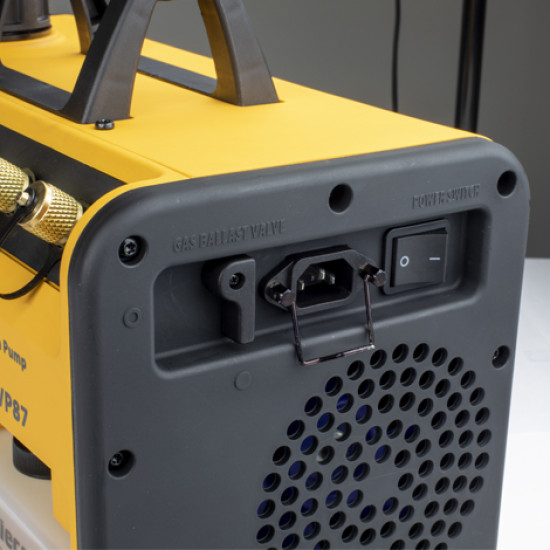

5. Easy-to-use gas ballast

To engage or disengage the gas ballast valve, simply turn the lever to whatever side is needed. This lever style system ensures that you can easily and quickly change the gas ballast, to make your job easier, better, and faster.

Specifications:

• Flow Rate: 10CFM
• Ultimate Vacuum at Input Ports: 15 Microns
• For Use With: A3, A2L, and A1 Refrigerants
• Not for Use With: R-702, R-717
• Oil Capacity: 237ml
• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
  Fieldpiece part numbers: OIL8X3, OIL32, OIL128
• Oil Backlight: Blue LED
• Oil Drain: Ball valve
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
• Compressor: Rotary vane, two stage
• Motor: 3/4 HP Brushless DC
• RPM: 2500
• Power Source: 110 VAC 50 Hz/ 230 VAC 50 Hz
• Nominal Current Draw: 5A @ 110 VAC / 2A @ 230 VAC
• Nominal Power: 550W @ 110V, 460W @ 230V
• Unit Ingress Protection Rating: IP20
• Dimensions: 201 mm x 296 mm x 406 mm
• Weight Empty: 12 kg
• Operating Environment: 0°C to 40°C
