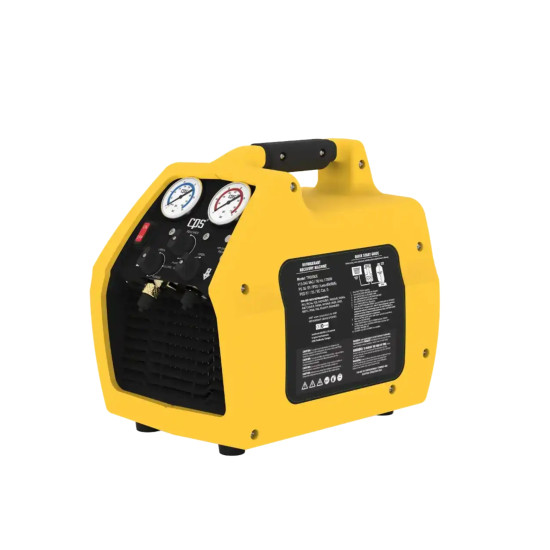

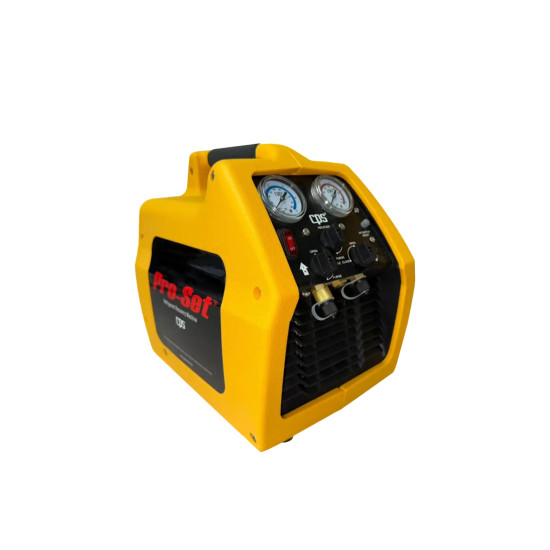

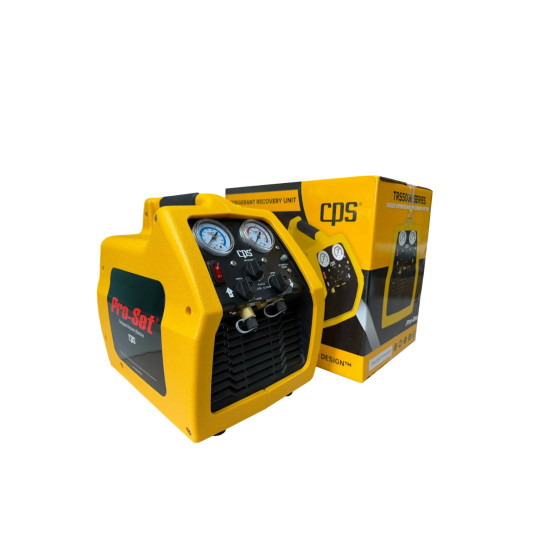

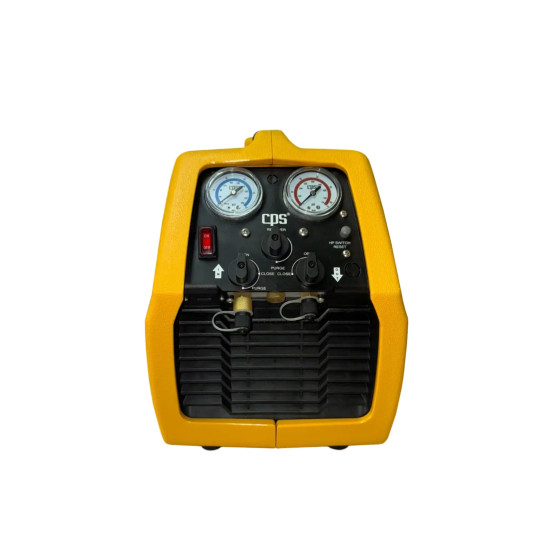

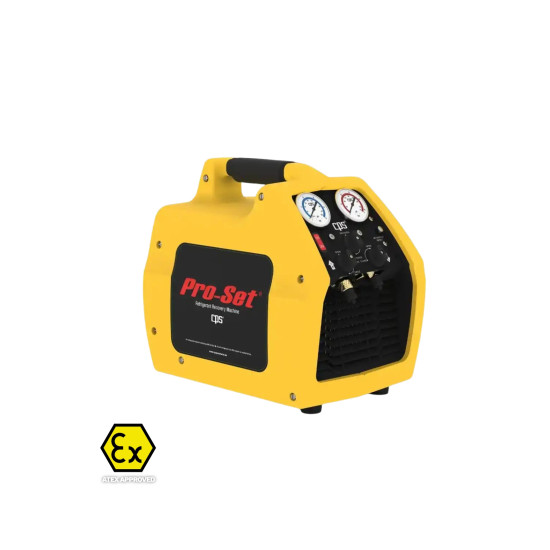

RECOVERY UNIT PROSET TRS500E-A2L-A3 ATEX 230V & R290 CPS USA

CPS USA is one of the leading recovery machine manufacturers in the U.S. market, renowned for offering the best speed-to-weight ratio and exceptional performance.

Today’s advanced refrigerant recovery units allow professionals not only to support environmental protection but also to improve operational efficiency and profitability. By investing in one of the most powerful recovery machines available—especially for liquid refrigerant recovery—at a highly competitive price and with full support from CPS USA, technicians gain a reliable tool capable of handling virtually any refrigerant encountered in the field.

The TRS500E features an oil-free lubricated compressor, enabling the recovery of a wide range of refrigerants, including R32 (A2L), HFO refrigerants, R600a, and R290 (A3), as well as traditional HFC, HCFC, and CFC refrigerants.

Specifications:

• Model: TRS500E-A2L-A3
• Application: Recovery of refrigerants in liquid or vapor form
• Compatible Refrigerants: R11, R12, R13B1, R22, R123, R134a, R141B, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407B, R407C, R407D/E/F, R408A, R409A, R410A, R411A/B, R412A, R500, R502, R503, R507, R509A, R422A, R422D, R1234yf/ze, R32, R600a, R290 and many more.
• Power Supply: 115 VAC 50–60 Hz or 230 VAC 50–60 Hz
• Power Cord Length: 3 m
• Motor Power: 3/4 HP, single-cylinder, Brushless DC motor
• Dimensions: 300 mm (L) × 220 mm (W) × 300 mm (H)
• Weight: 10 kg
• Operating Temperature: 10°C to 40°C
• Maximum Operating Pressure: 38 bar (automatic reset), with LED indication and washable inlet protection filter

Recovery Rates (R410A at 50 Hz)

• Direct Vapor Recovery: up to 8.4 kg/h
• Direct Liquid Recovery: up to 105.6 kg/h
• Push-Pull Liquid Recovery: up to 332.4 kg/h

Certifications

Certified according to:

• CE
• CSA
• TÜV
• ANSI 12.12.01
• UL1963 Ignition Proof
• EPA requirements

The TRS500E is one of the most compact, lightweight, and reliable refrigerant recovery units on the market, yet delivers outstanding performance. It is capable of recovering virtually all refrigerants and is recommended for residential, commercial, and air-conditioning applications. When used with an optional subcooler, its recovery performance can be enhanced even further.

View the technical brochure here

View the technical data sheet here
