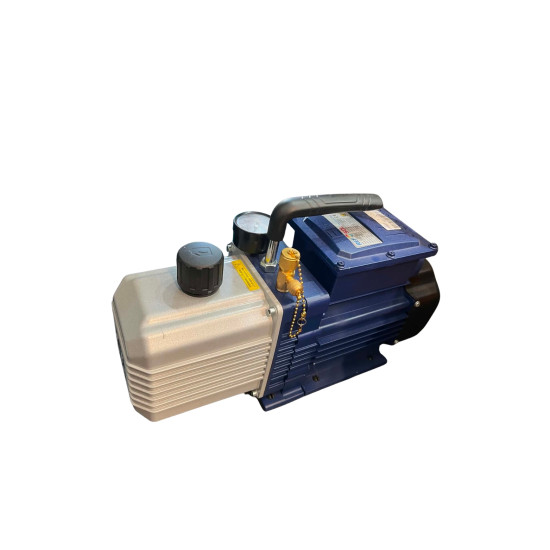

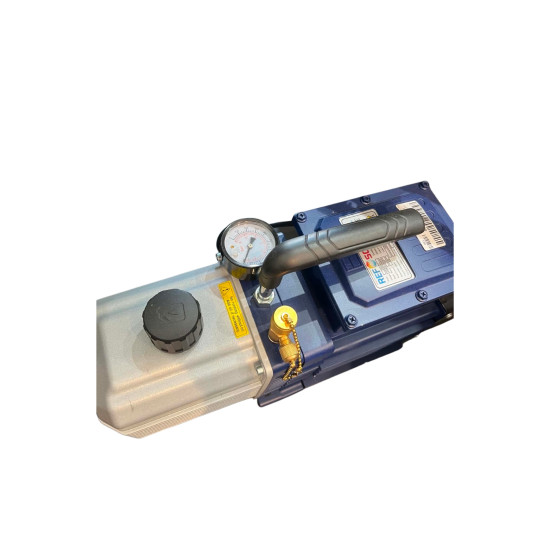

RFS-OI6D-EX Two-Stage Vacuum Pump 6 CFM (170 L/min) 1 HP 15 Microns ATEX Rated

REFSOL ATEX TWO-STAGE VACUUM PUMP 6CFM-170 LIT EXPLOSION-PROOF OI6D-EX.

The vacuum pump is used for HVAC/R repair evacuation and new installations. For use in refrigeration systems that utilize Category A1 (non-toxic, non-flammable), Category A2L (non-toxic, low flammability), and Class A2 (non-toxic, flammable) and A3 (non-toxic, flammable) refrigerants.

Two-stage vacuum pump

● Inlet port: 1/4” & 3/8” SAE
● Capacity:
170 L/min / 6 CFM @ 50Hz
198 L/min / 7 CFM @ 60Hz
● Motor: 4-pole AC, single-phase
220-240V – 50/60Hz
● Power: 1HP
● Includes 2 capacitors (start and run)
● Thermal protection and current overload protection
● Two-stage rotary vane pump
● Rating: 15 microns
● Explosion-proof power switch
● Power cable length: 5 meters

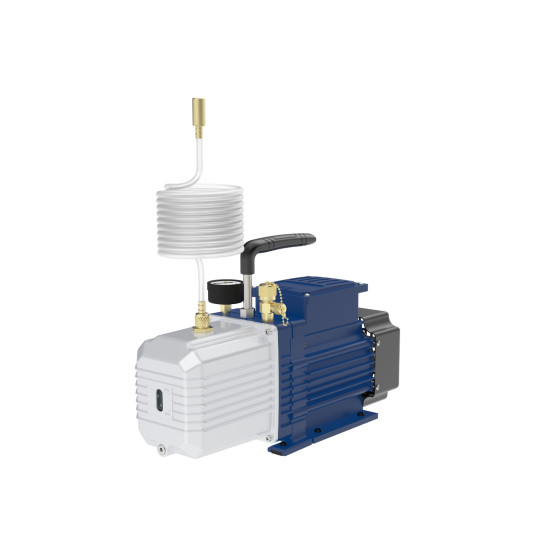

● Standard exhaust port + 5 m exhaust hose
● Includes vacuum gauge

REFSOL VACUUM PUMP TECHNICAL SPECIFICATIONS:

• MODEL: OI6D-EX
• FLOW RATE:
• 50Hz: 6.0 CFM / 170 L/min
• 60Hz: 7.0 CFM / 198 L/min
• ULTIMATE VACUUM:
• Partial pressure: 1×10⁻¹ Pa
• Total pressure: 7.5 microns
• POWER: 1HP, AC motor, 1425 RPM @ 50Hz
• INLET PORTS: 1/4” & 3/8” SAE
• OIL CAPACITY: 600 ml
• DIMENSIONS (mm): 440 × 150 × 260
• WEIGHT: 18.3 kg

The REFSOL vacuum pump is used for evacuation of HVAC/R systems during repair and installation of new units. It is suitable for use in refrigeration systems utilizing Category A1 refrigerants (non-toxic, non-flammable), Category A2L refrigerants (non-toxic, low flammability), as well as Category A2 and A3 refrigerants (non-toxic, flammable).

REFRIGERANTS – A3 Refrigerants

COMPATIBLE WITH THE FOLLOWING REFRIGERANTS:
R50, R170, R290, R600, R600a, R601, R601a, R1270, R430A, R431A, R433A, R433B, R433C, R436A, R436B, R441a, R443A, R511A.

NOT COMPATIBLE WITH THE FOLLOWING REFRIGERANTS:
R702, RE170, R1150, R429A, R432A, R435A, R510A.
