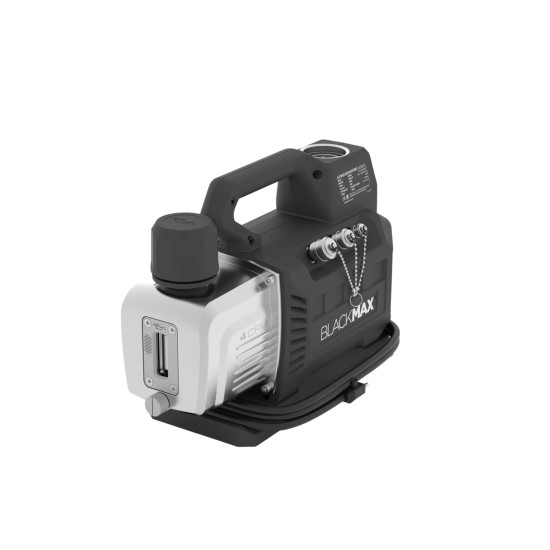

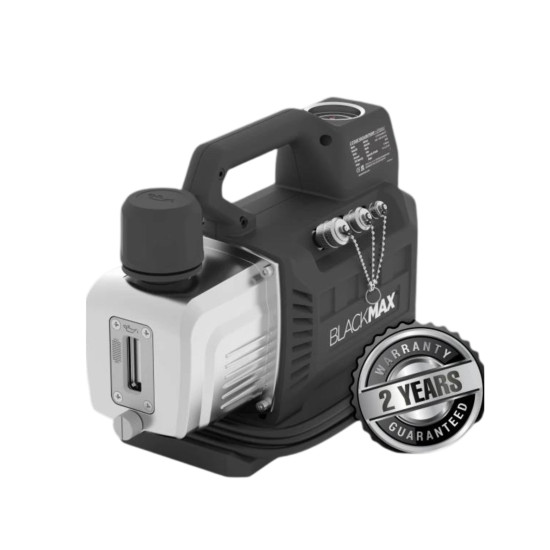

BLACKMAX VPBM4V Two-Stage Inverter Vacuum Pump 4 CFM (115 L/min) 1/2 HP 15 Microns R32 Compatible Dual Voltage CPS USA

VPBM4V Vacuum Pump, Two-Stage, Inverter, 4 CFM, 115 L/min, 1/2 HP, 15 Microns, R32 Compatible, Dual Voltage, BLACKMAX, by CPS USA.

CPS USA is one of the leading manufacturers of professional-grade vacuum pumps in North America. Built from premium materials and precision-engineered to the highest quality standards, CPS vacuum pumps are ideal for air-conditioning systems, commercial and industrial refrigeration, as well as mobile and transport refrigeration applications.

TECHNICAL DATA:

• Model: VPBM4V with integrated solenoid valve (maintains vacuum in the event of a power failure during operation)
• Application: Evacuation of air from refrigeration, air-conditioning, and heat pump systems
• Compatible Refrigerants: Suitable for systems using all A1 and A2 refrigerants, as well as A2L and A3 refrigerants (fully sealed electronics and explosion-proof switches)
• Power Supply: Dual voltage, 110V – 240V / 50Hz
• Capacity: 1/2 HP, 115 L/min – 4 CFM

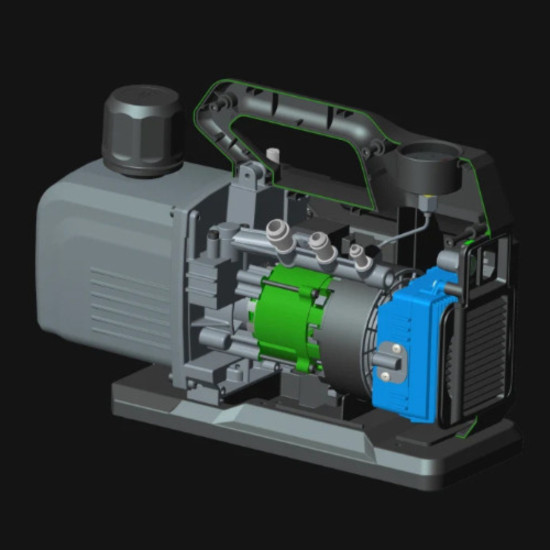

• Motor: High-speed design with double operating speed, 3200 RPM instead of 1440 RPM
• Stages: Two-stage, achieving 15 microns ultimate vacuum
• Oil Capacity: 440 ml

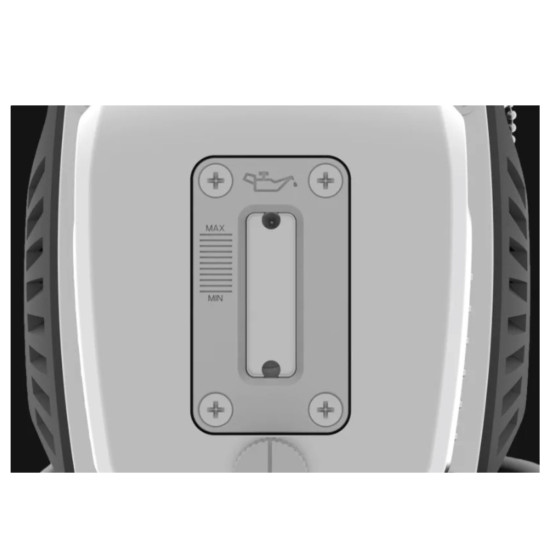

• Oil Fill Cap: Dual-seal oil cap to prevent leaks and sight glass made from real glass (not plastic or double-layer transparent material)
• Power Cord Length: 3 m
• Inlet Ports: 1/4", 3/8" & 1/2" SAE
• Dimensions: 352 mm (L) × 147 mm (W) × 254 mm (H)
• Weight: 8.25 kg

Manufactured by CPS USA, the American specialist in tools and equipment for the refrigeration and air-conditioning industry, offering high-quality, intelligent, and practical solutions at professional prices, with performance that truly impresses.

View the technical data sheet here

Learn more here
