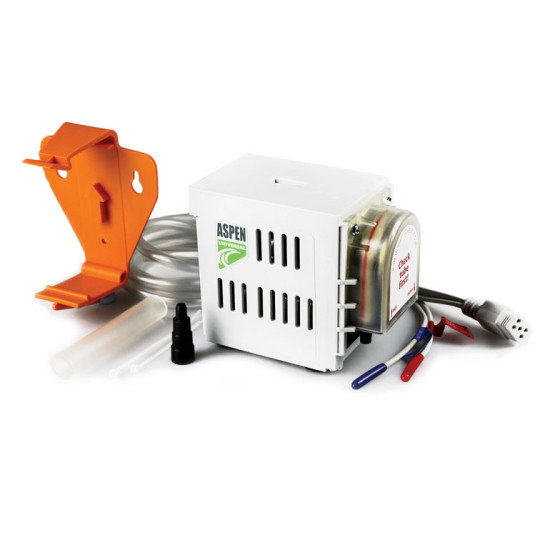

UNIVERSAL PERISTALTIC CONDENSATE PUMP ASPEN

The "Universal" peristaltic pump is unique. Integrated into the pump is an electronic board and two sensors of 2m each, who just sense a 5°C difference in the cell (evaporator) they start the pump. This is a huge advantage in signal only systems (electric) that exists is a 220v. Simply connect the peristaltic pump to the condensate vessel of the device (using the tube provided),the main supply and the cooling signal of the air conditioner in the control contact. The pump can draw from 3m and discharge a quantity of 6.5lt/hour up to 12m manometric (height).

• It only works on cooling.

• Sucks from a distance 3 meters (9.8ft).

• Rejection up to 12 manometric meters (height).

• Water supply: 6.25 ltrs (1.65 US gallons) per hour at 12 m manometric.

• Mode 3 minutes after stopping the air conditioner to drain the condensate pan.

• It does not return water back (it does not siphon).

• It does not make noise during dry operation.

• Its small volume makes it ideal to fit in narrow and low places.

• It pumps water and condensate with impurities as well as air.

• It has a mechanical control switch.

• Power consumption: 0.2A, 230V AC.

• Maximum water temperature: 40°C.

• Construction of plastic with flame retardant.

Characteristics:

• Maximum water flow: 6.5 L/h @ 12m head

• Maximum recommended pressure gauge: 12m

• Maximum water suction: 3m

• Container Capacity: 5L

• Noise level: 47dB(A) @ 1m

• Power supply: 230 VAC, 0.2A, 50/60Hz

• Mode: Continuous

• Class: I Appliance

• Maximum unit installation: 8.5kW / 29,000Btu/h

• Maximum water temperature: 40°C / 104°F

• Water inlets: 6mm ID

• Drainage tubing: 6mm ID

• IP protection: IP21

• Switch security: n/a

• Thermal protection: ✓

• Fully potted: n/a

• Self priming: n/a

• Part number: FP2082/2

View the technical brochure here
