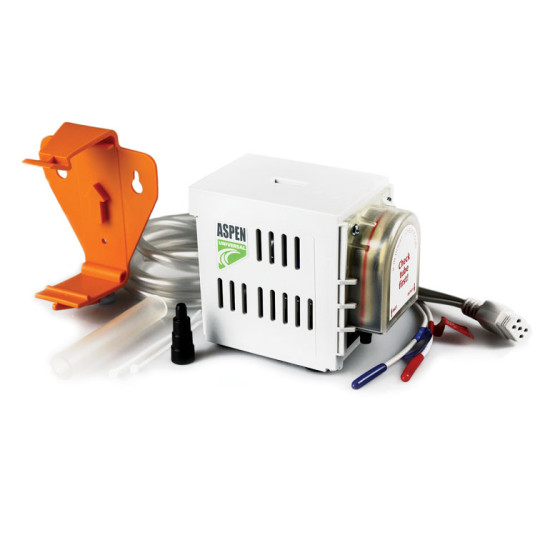

STANDARD Peristaltic Condensate Pump ASPEN

High-quality condensate pump from Europe's leading manufacturer and one of the top globally.

Unmatched quality, flexibility, functionality, and reliability in a component critical to your HVAC systems!

Among the highest-quality pumps worldwide. Exceptional performance at the best market price. The only pump with full technical support – built to never let you down!

Simply connect the peristaltic pump to the unit’s condensate tray (using the supplied tubing), the main power supply, and the cooling signal from the air conditioning unit to the control contact.

The pump can suction from up to 3 meters and discharge 6.5 L/h up to 12 meters head height.

Technical Specifications:

• Operation Voltage: 220V (via cooling signal)

• Suction distance: up to 3 meters (9.8 ft)

• Discharge head height: up to 12 meters

• Flow rate: 6.25 liters (1.65 US gallons) per hour at 12 m head

• Post-cycle operation: continues for 3 minutes after the A/C unit stops, to drain remaining condensate

• No water backflow (no siphoning effect)

• Silent during dry run operation

• Compact size: ideal for tight and low-clearance installations

• Handles water with impurities and air

• Equipped with mechanical control switch

• Power consumption: 0.5 A, 240V AC

• Max water temperature: 40 °C

• Casing material: flame-retardant plastic

View the technical brochure here
