MECHANICAL CONDENSATE PUMP WITHOUT ALARM ASPEN

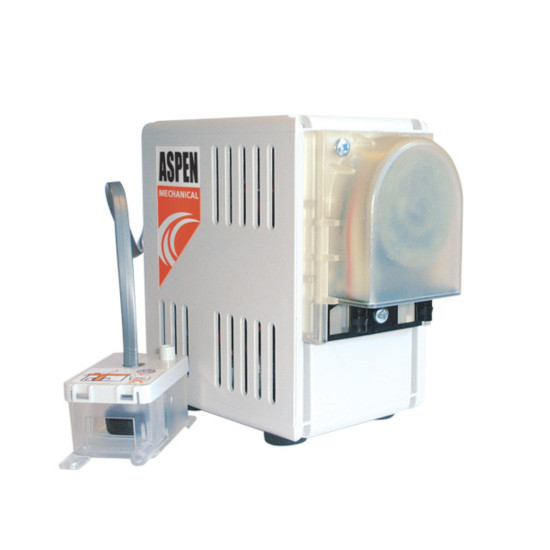

Aspen Mechanical Peristaltic Condensate Pump, without alarm.

The mechanical peristaltic pump is the latest model. It is designed to suction and comes with a 3m cable float switch. Simply connect it to the drain pipe or the condensate tray. Peristaltic pumps have the advantage of being able to draw even dirty condensate or air.

It can suction from up to 3m and discharge up to 6.5 liters/hour at a head (pressure height) of up to 12m.

It does not siphon and does not make noise if it needs to run dry. It can be installed in very confined spaces, is made of plastic with a fire retardant, and the water temperature should not exceed 40°C.

Specifications:

• Maximum water flow: 6.5 L/h @ 12m head

• Maximum recommended head pressure: 12m

• Maximum water suction: 3m

• Noise level: 47dB(A) @ 1m

• Power supply: 230 VAC, 0.2A, 50/60Hz

• Operation: Continuous

• Class: I Appliance

• Maximum unit installation capacity: 8.5kW / 29,000 Btu/h

• Maximum water temperature: 40°C / 104°F

• Water inlet: 6mm ID

• Drain hose: 6mm ID

• Protection rating: IP21

• Fully potted: n/a

• Part number: Mechanical FP2078 | Mechanical with alarm FP2079

View the technical specifications here
