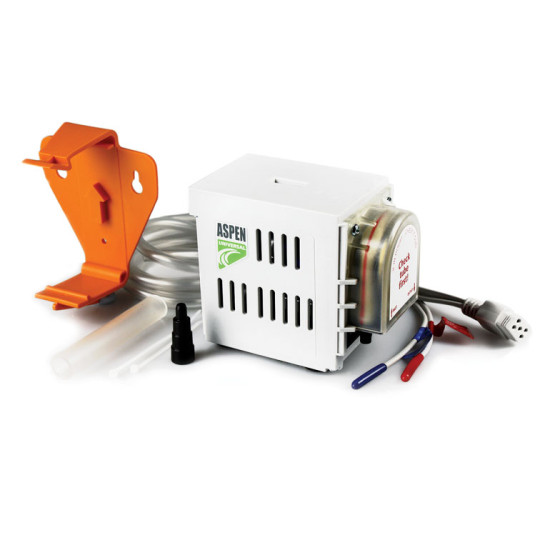

STANDARD "new small" Peristaltic Condensate Pump ASPEN

A high-quality condensate pump from Europe’s leading manufacturer and one of the top global names in the industry.

Unmatched quality, flexibility, functionality, and reliability in a component of critical importance for your systems.

Among the most reliable pumps worldwide – offering exceptional performance at the best market price. The only pump with full technical support, designed never to let you down!

The ASPEN Standard "New Small" peristaltic condensate pump is compact and ideal for installations with limited space.

Simply connect the pump to the unit's condensate tray (using the supplied tubing), the main power supply, and the cooling signal from the A/C unit to the control input. The pump can draw from up to 3 meters and discharge up to 6.5 L/h at 12 meters head height.

Technical Specifications:

• Power supply: 220V (cooling signal)

• Suction lift: up to 3 meters (9.8 ft)

• Discharge head: up to 12 meters

• Flow rate: 6.5 liters per hour at 12 m head

• Post-cycle operation: runs for 3 minutes after A/C shutdown to fully drain the condensate tray

• Non-siphoning: prevents water from flowing back

• Quiet dry-run operation

• Ultra-compact size: perfect for tight or low-clearance installations

• Capable of handling: water, condensate with impurities, and air

• Equipped with mechanical control switch

• Power consumption: 0.5 A, 240V AC

• Max water temperature: 40°C

• Construction: flame-retardant plastic housing

View the technical brochure here
