PIPE FASTENING SYSTEM INSULCLAMP 1 3/8" BBJ

*Sold by the piece.

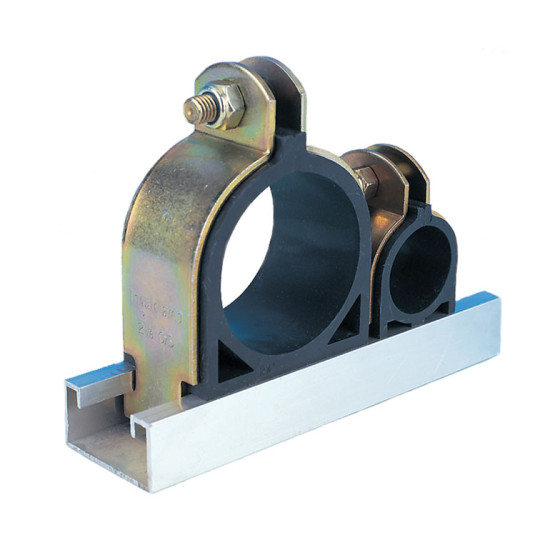

Channel clip ideal for bigger commercial air conditioning and refrigeration installations.

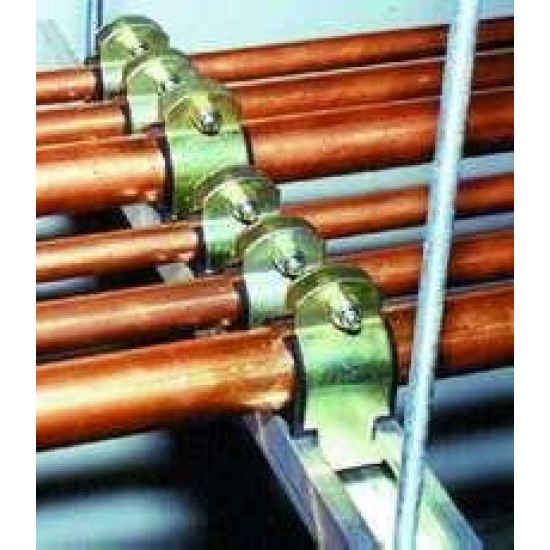

They provide a simple yet excellent solution to the challenges of effective pipe support in refrigeration, air conditioning, and plumbing installations. A semi-rigid separator made of thermoplastic material offers reliable support both indoors and outdoors (including vertical mounting), with excellent insulating properties that help reduce the transmission of unwanted vibrations and noise from the machine room, as well as lower the risk of costly and problematic refrigerant leaks into the environment.

The thermoplastic material can withstand temperatures from -25°C to +125°C and has excellent resistance to UV radiation and other corrosive substances. The metal components, including the screw and the nut, are coated with high-quality finishes for complete rust protection. The special lock nut prevents loosening due to vibrations. A full range of 14 sizes (from 1/4" to 4 1/8") is available in bags of 10 pieces and fits into a 40 x 20 mm aluminum channel.

• Easy installation into 40mm x 40mm and 40mm x 20mm channel

• Insulates against heat loss and reduces vibration

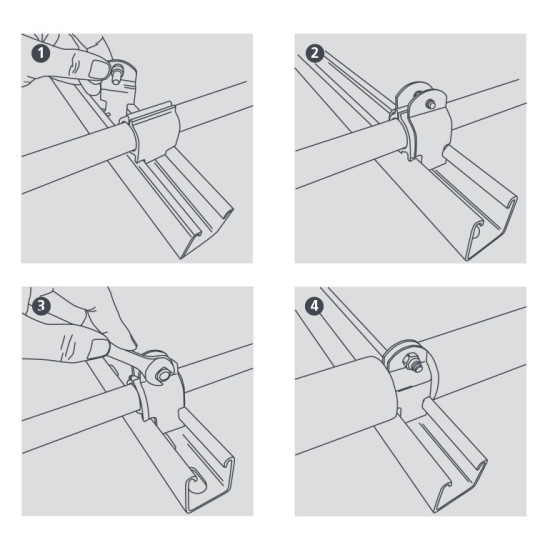

• Quick to install with lock nuts

• Fits into shallow void

• Supports individual pipes into a thermo-rubber cushion between two metal plates

• Thermo-rubber cushion insert withstands maximum temperature of 130ºC (zinc bracket 1000ºC)

• Materials of construction: Zinc passivated steel with rubber cushion

• Max Temp: 130°C

• Max rec distance per clip: 1.2m

For further technical information consult the attached tech sheet here
