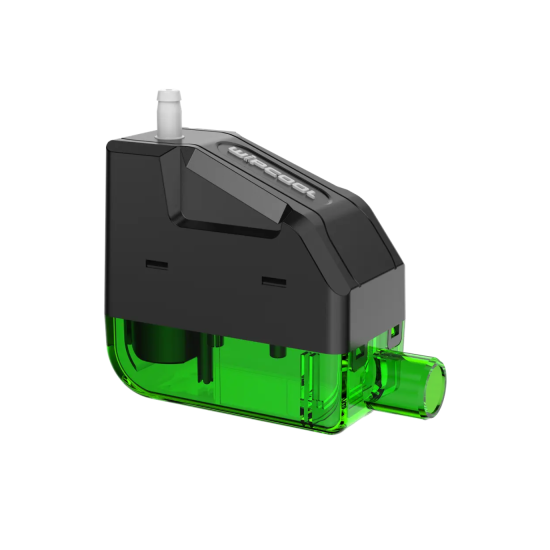

Corner Mini Condensate Removal Pump P12C WIPCOOL

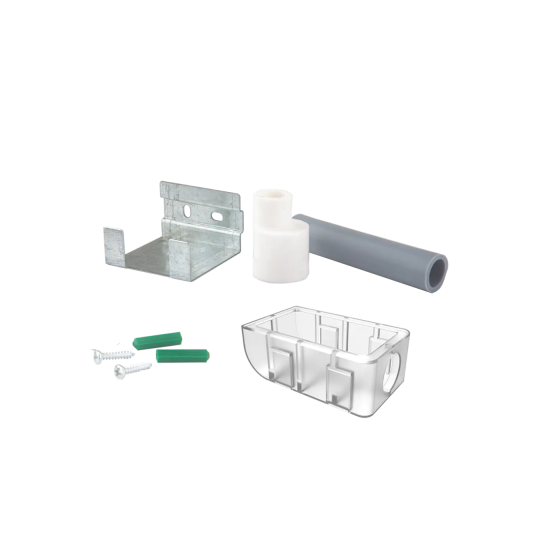

Condensate Removal Pump Kit Mini P12C (split) by WIPCOOL.

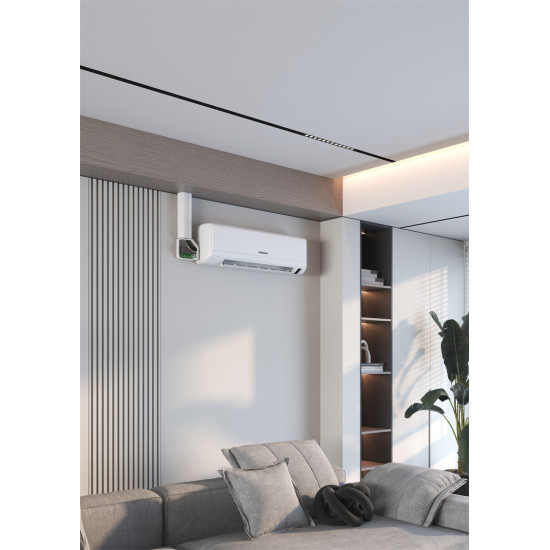

Split condensate pump "mini P12C" designed primarily for household air conditioning units, having the capability to fit into side corners of decorative plastic channels, making it practically invisible!

The P12C is specially designed so that its orientation can be either right or left (for channels), for units with cooling capacity below 30,000 BTU/hr.

Built‑in alarm function (via dry contact safety switch), it incorporates unique vibration‑reduction technology, ensuring that the pump can operate quietly for long periods, guaranteeing the safe drainage of condensates.

• Power Supply: 100V–230V~ / 50–60Hz

• Alarm Contact (dry): NC, 8A resistive load

• Maximum Recommended Head (vertical height): 7m (23ft) → approx. 4 l/h

• Sensor Tank Capacity: 45ml

• Maximum Water Flow (at 0 head): approx. 12 l/h → (see manual, e.g. at 6m head ~ 6 l/h)

• Sound Level at 1m: 19 dB(A)

• Maximum Water Temperature: 30°C

• CE Marked

View the tech manual here
