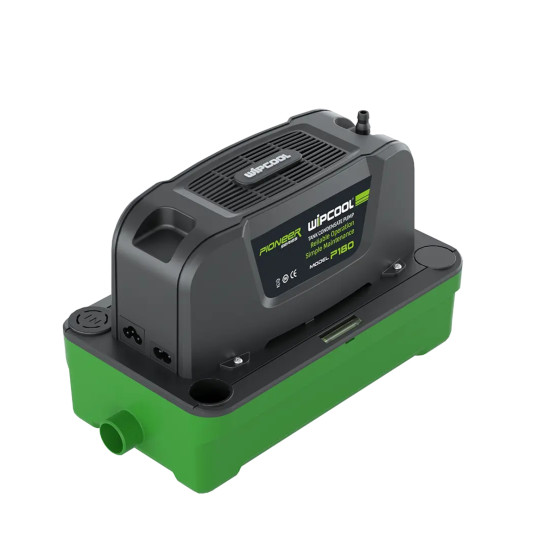

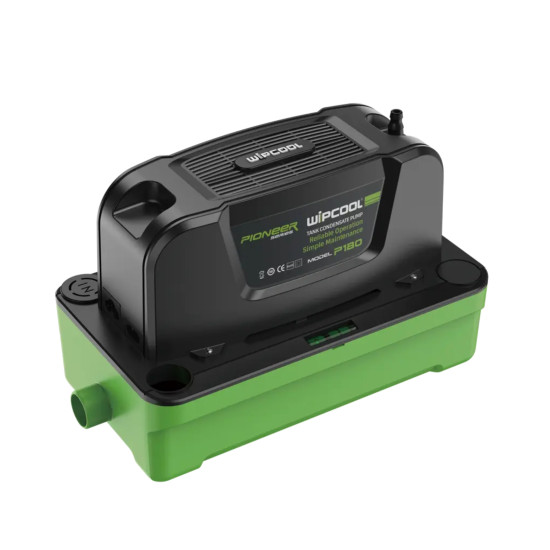

General Purpose Tank Pump P180 WIPCOOL

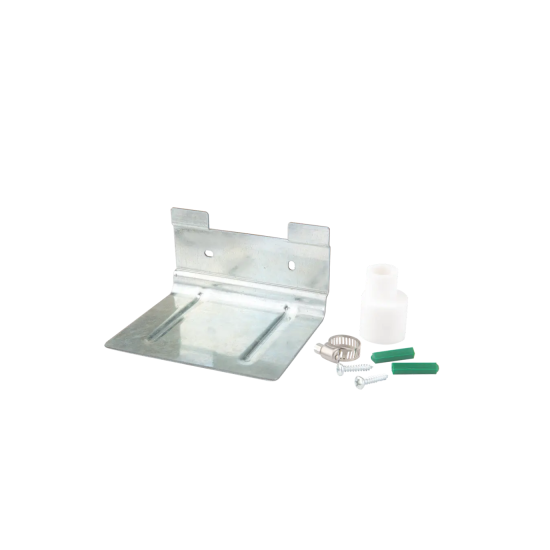

Condensate Drain Pump Kit P180 (Tank) by WIPCOOL.

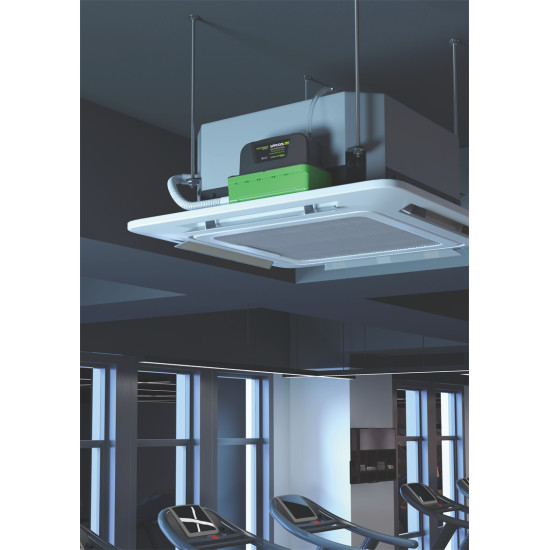

The “P180 tray-type” condensate pump is designed for installation in ducted units, above suspended ceilings where possible, directly inside deep condensate trays, behind walls, or anywhere condensate can flow naturally into its reservoir.

The P180 is a sleek and attractive unit with a height of 17.1 cm. It features an audible alarm for added safety, integrated leveling bubble, slim design, smart and easy connectivity, dual-sensor technology in the reservoir, and a built-in non-return valve to prevent backflow. It supports both wall-mounted and floor-mounted installation, making it a truly all-in-one solution.

Suitable for systems with cooling capacity up to 300,000 BTU/hr.

• Power Supply: 230V~ / 50–60Hz, 60W

• Alarm Contact (dry): N.C 8A resistive

• Maximum Recommended Head (vertical): 4.5 m (15 ft) → ~20 L/h

• Maximum Suction Distance from Unit: -

• Sensor Tank Capacity: 1.8 L

• Maximum Water Flow (at 0 head): ~180 L/h → (see manual; e.g., at 4 m head ~80 L/h)

• Sound Level at 1 m: 48 dB(A)

• Dimensions: 171 mm (H) x 149 mm (W) x 271 mm (L)

• Outlet Size: Ø10 mm

• Maximum Water Temperature: 30°C

• CE Marked

View the tech manual here
