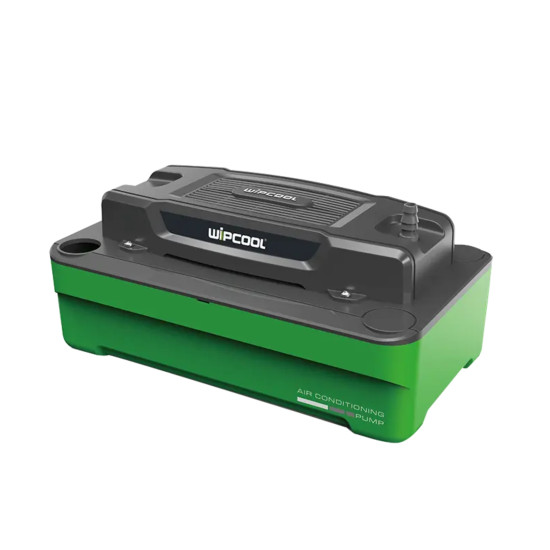

Low Profile High Flow Tank Pump P380 WIPCOOL

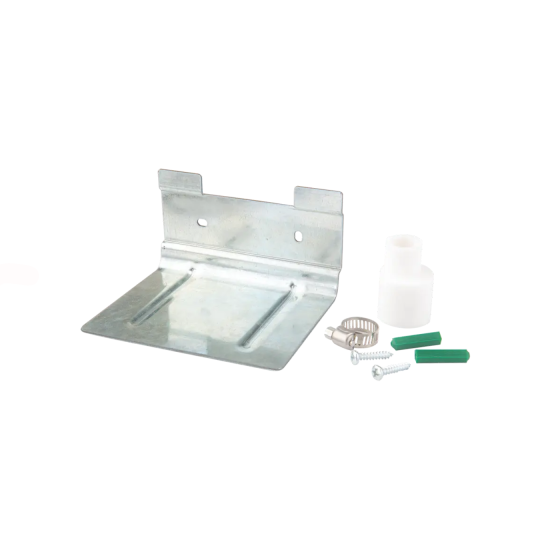

Condensate Drain Pump Kit P380 (Tank) by WIPCOOL.

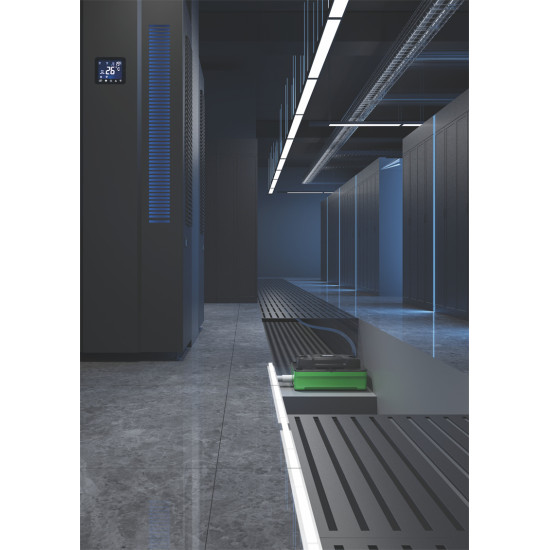

The “P380 tray-type” condensate pump is designed for installation in ducted air conditioning units, above suspended ceilings where possible, directly inside deep condensate trays, behind walls, or in any location where condensate can naturally flow into its reservoir.

The P380 is a compact and attractive unit, with a low height of just 11.9 cm. It features an audible alarm for increased safety, integrated leveling bubble, slim design, smart and easy connectivity, dual-sensor technology in the reservoir, and a built-in non-return valve to prevent backflow. With the option for wall-mounted or floor-mounted installation, it is a fully equipped and versatile solution.

Suitable for systems with cooling capacity up to 500,000 BTU/hr.

• Power Supply: 100V–230V~ / 50–60Hz, 20W

• Alarm Contact (dry): N.C 8A resistive

• Maximum Recommended Head (vertical height): 6.8 m (22 ft) → ~30 L/h

• Maximum Suction Distance from Unit: –

• Sensor Tank Capacity: 1.8 L

• Maximum Water Flow (at 0 head): ~380 L/h → (see manual; e.g. at 6 m head ~130 L/h)

• Sound Level at 1 m: 28 dB(A)

• Dimensions: 119 mm (H) x 149 mm (W) x 274 mm (L)

• Outlet Size: Ø10 mm

• Maximum Water Temperature: 30°C

• CE Marked

View the tech manual here
