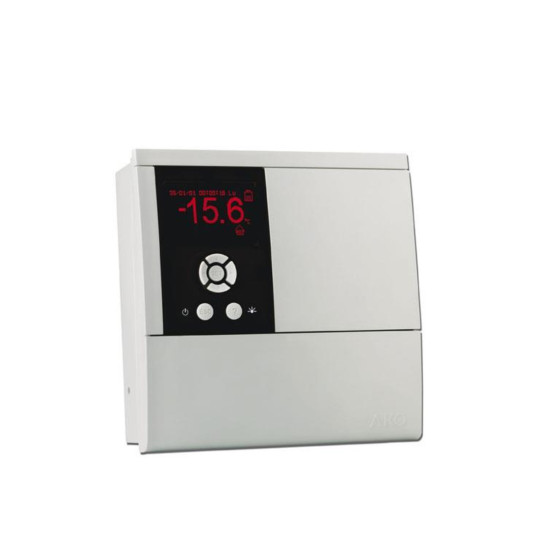

Temperature & Humidity Data Logger (depending on the sensor you choose) 15740 with 10 channels (without printer) 220V AKO Spain

NEW TYPE, 10 CHANNELS, includes 5 sensors, WITHOUT PRINTER.

NTC -> Variable resistor in series 5.7kΩ or 10kΩ to reduce reading.

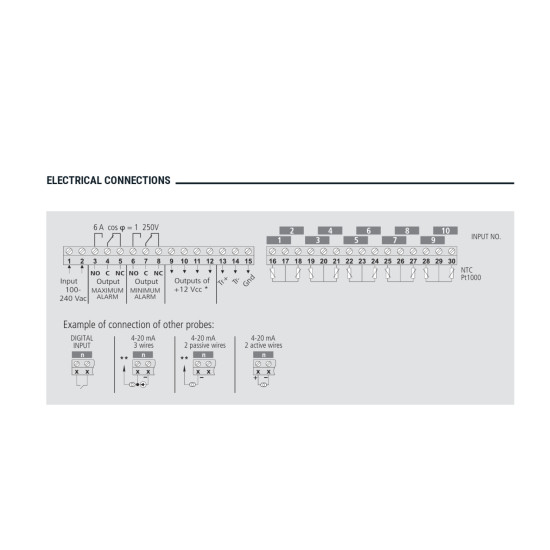

Input for NTC sensors, J and K thermocouples, and 4-20mA.

Includes a graphical display with information that can be customized by the user. Measurement display and recording via software – with charts or data tables. Ideal for recording temperature and humidity in cold storage rooms and in applications where permanent recording and display of these parameters is essential. Sufficient memory for data logging up to one year, with an internal battery providing up to 48 hours of autonomy. Designed according to European standard EN 12830. Relay output for alarm signaling. Brackets for wall or panel mounting. Built-in RS485 communication. ModBus protocol.

SPECIFICATIONS:

• Temperature range (depending on sensor type): -100°C to +1000°C
• Measurement resolution: 0.1°C
• Measurement accuracy: ±1°C
• 4-20mA input accuracy: ±0.2mA
• Enclosure dimensions: 230x230x90 mm
• Protection rating: IP65
• Autonomy: 48 hours

Compatible for control and printing of recordings via PC with 25.01.293 (software 5008) & 25.01.300 (converter 80039) & 25.01.301 – 25.01.299 (AKO Xavip EDGE via cloud).

View the Ako catalog here
