Description

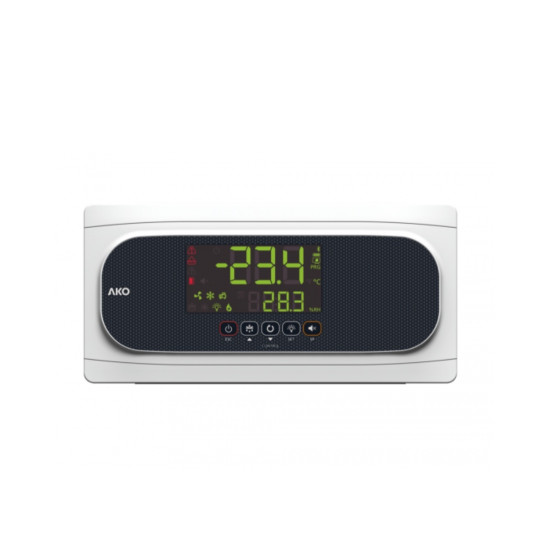

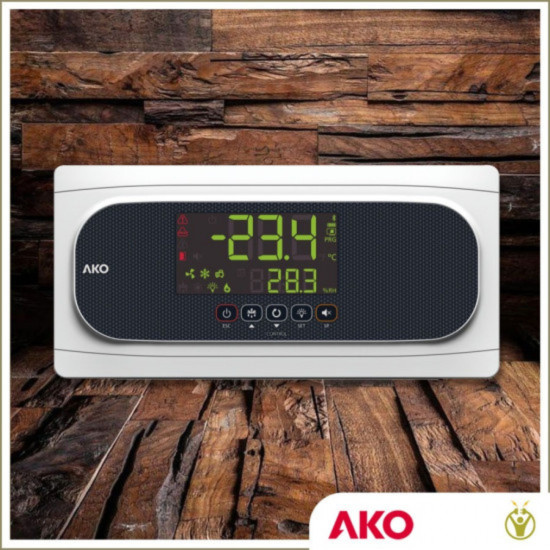

AKO-16624 Temperature and Humidity Electrical Control Panel up to 2HP 90–240V AKO Spain

Name: AKO-16624 Temperature and Humidity Electrical Control Panel up to 2HP 90–240V AKO Spain
Brand: AKO electronics (Spain)
Price: 350.85 EUR
Availability: InStock

An electrical control panel without a circuit breaker, capable of managing temperature and humidity in complete refrigeration systems for chilling or freezing applications. It can also be used as a sub-panel in installations with central (multi) systems, controlling all functions such as: evaporator heaters, compressor, solenoid valve, crankcase heaters, single-phase evaporator fans, air defrost or electric defrost, cold room lighting switch, as well as control of humidifier & dehumidifier with on/off operation and analog 4–20mA inputs.

Alarm signalling is provided via buzzer and relay, along with graphical display.

It can be connected and controlled via Bluetooth (including remote access via mobile “sharing”), and it can also record data through the CAMM MODULE (optional).

Technical Specifications:

Temperature range: -50°C to +99°C
Graphical display
Sensor type: NTC (2 included)
Resolution: 0.1°C
Accuracy: ±1°C
Real-time clock
Internal buzzer
Enclosure dimensions: 230 x 230 x 90 mm
Protection: IP65

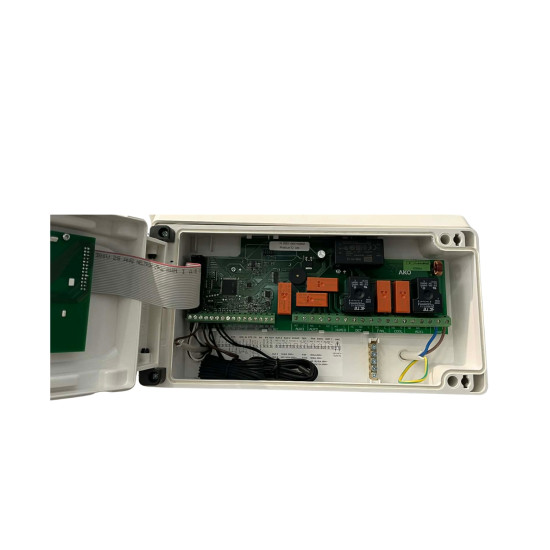

Output Relays:

Compressor relay: 12A (9A), 250V, cosφ = 1
Solenoid valve relay: 12A (9A), 250V, cosφ = 1
Fan relay: 12A (9A), 250V, cosφ = 1
Lighting relay (AUX2):
- NO → 12A (9A), 250V
- NC → 10A (8A), 250V
Heater relay:
- NO → 15A (15A), 250V
- NC (SSV) → 15A (13A), 250V
Humidifier relay: 12A (9A), 250V, NO
Crankcase heater relay (AUX1): 15A (15A), 250V, NO/NC
(AUX2) relay: 12A (9A), 250V, NO/NC
(AUX3) relay: 12A (9A), 250V, NO
Alarm relay (SPDT): 8A, 250V, cosφ = 1

Inputs & Communication

2 configurable digital inputs
Communication via Modbus RS485

View more on pages 21 - 23 here

Learn more about the AKO presentation here

Learn more about the efficiency optimization presentation here

View the user manual here
