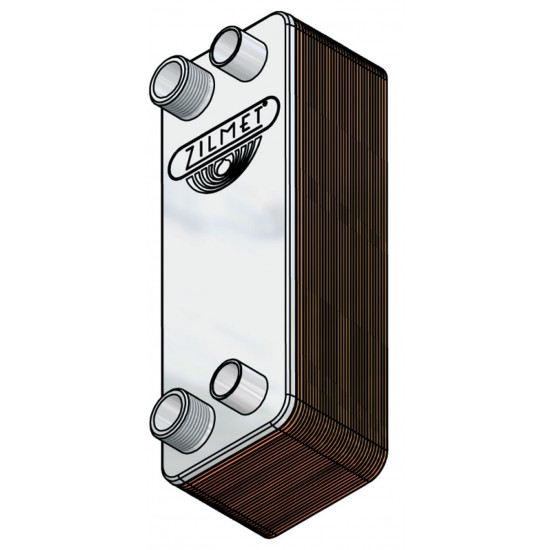

Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"

Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"
Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"
Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"

Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"
Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"
Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"

Suitable for applications Water/Water or Water/Refrigerant with glycol or not.

Max. Working Pressure = 45bar

The capacity is in ΚW and referes to R407C, with temperature inlet 12C & water outlet 7C
CONDENSER 17.50kW R407C, water inlet 40C & water outlet 45C
Max Working Temperature = -50C έως +200C

EVAPORATOR (Refrigerant/Water)
REFRIGERANT INLET = Α2
REFRIGERANT OUTLET = Α1
WATER INLET = Β1
WATER OUTLET = Β2

CONDENSER (Refrigerant/Water)
REFRIGERANT INLET = Α1
REFRIGERANT OUTLET = Α2
WATER INLET = Β2
WATER OUTLET = Β1

In any other application except refrigerant (e.g. Water/Wine) you have to follow the philosophi of opposite flow



NOTE : ONLY VERTICAL INSTALLATION

Dimensions
Distance between the connections (lenght side) 250 mm
Distance between the connections (width side) 50 mm
Height 1370 mm {(9
Lenght 310 mm
Weight 7.90 kg (1
Width 112 mm
Temperature
Max. working temperature -50°C / +200°C
Technical
Brazing material Copper 99
Connections material stainless steel 316 L
Freon connections Ø 12
Max. working pressure 30 bar - 45 bar
Number of plates 50
Plates material stainless steel 316 L
Water connections 2 x 1" G stainless steel
Heat Exchanger ZC250*50P, suitable also with R410a, 22.4mm OD-1"NPT, 11ΚW, "ZILMET"

Login to see prices

You need to be logged in to see the prices. Log in here!


2102280384 - 2102286268

  • Stock:
  • Model: 33.04.703
  • Weight: 7.90kg
  • Dimensions: 310.00mm x 112.00mm x 1,370.00mm
ZILMET (Italy) ZILMET (Italy)
Products Sold: 0
Based on 0 reviews. - Write a review
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Request more info
Due to the large number of products, please consult the last modified date value (located under the product price) for the validity of the price of each product. By placing your order we will call you to confirm availability and price of products you have ordered.
