BPV31-BULLET PIERCING VALVE for 1/4" 5/16" 3/8" SUPCO USA

BPV31-bullet-piercing-valve-SUPCO
BPV31-bullet-piercing-valve-SUPCO

Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

BPV31-bullet-piercing-valve-SUPCO
BPV31-bullet-piercing-valve-SUPCO

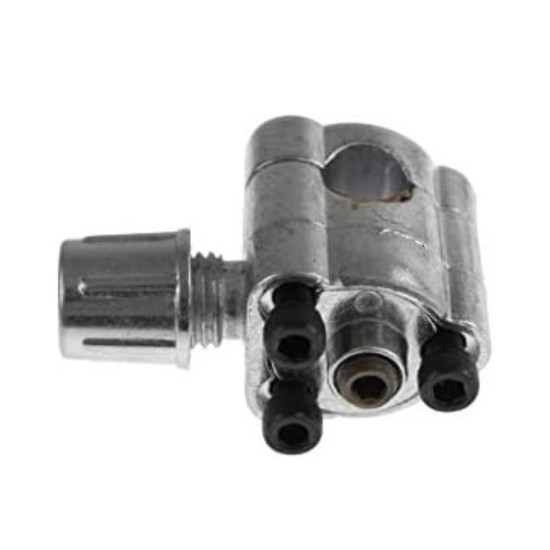

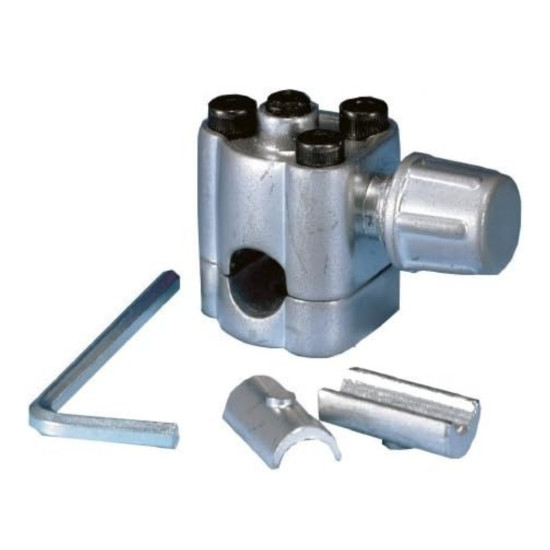

BPV31-BULLET PIERCING VALVE for 1/4" 5/16" 3/8" SUPCO USA

The only valve with a permanent gasket to provide 50 times more sealing area then standard O-ring type valves. Safe for use on the LOW SIDE of R410 systems.

Features/Benefits

  • 500 PSI Maximum pressure

  • Corrosion resistant

  • Hex key wrench included

  • Non-positional mounting, no adapter valve required

  • Patented valve gasket provides 50 times more sealing area than competitive 'O' ring types

  • Piercing needle is engineered for concentricity and hardness to insure perfect seating every time

  • Requires only 2" clearance for installation and operation

See the instructions for use here

See the safety datasheet here



Max. PSI:

500PSI

OD size:

¼", 5/16", and ⅜"

Package:

12/box

Connection:

¼" Male Flare (0.25")

Material:

Zinc

Technical
OD size ¼"
Package 12/box
PSI 500PSI (max)
BPV31-BULLET PIERCING VALVE for 1/4" 5/16" 3/8" SUPCO USA

Login to see prices

You need to be logged in to see the prices. Log in here!


2102280384 - 2102286268

  • Stock: In Stock
  • Model: 09.07.064
  • Weight: 0.08g
  • Dimensions: 3.50cm x 3.50cm x 6.30cm
Products Sold: 0
Due to the large number of products, please consult the last modified date value (located under the product price) for the validity of the price of each product. By placing your order we will call you to confirm availability and price of products you have ordered.
