MAXI SPLIT CONDENSATE PUMP P32 WIPCOOL

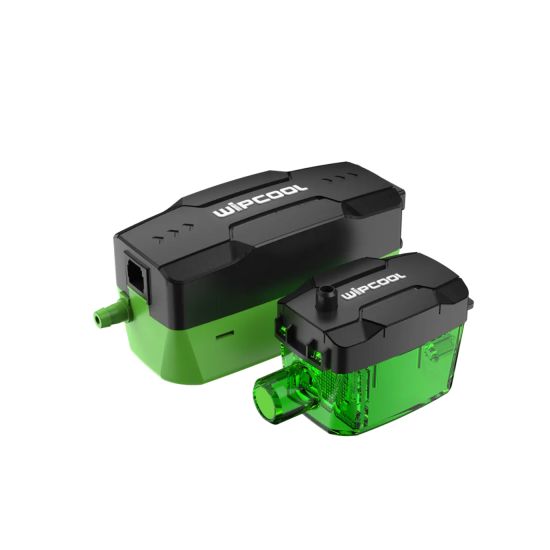

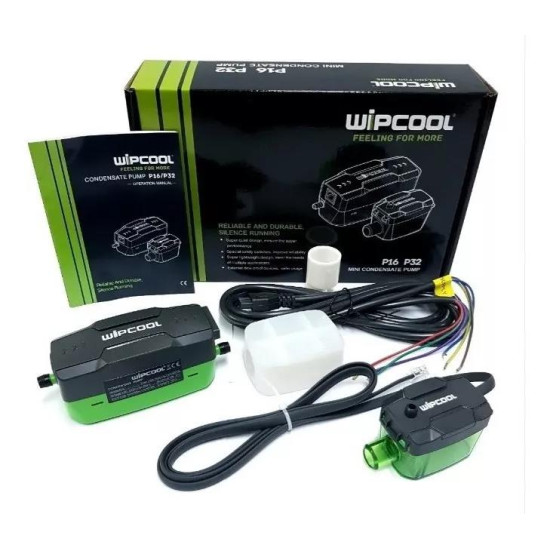

Condensate Drain Pump kit maxi P32 (split type), by WIPCOOL.

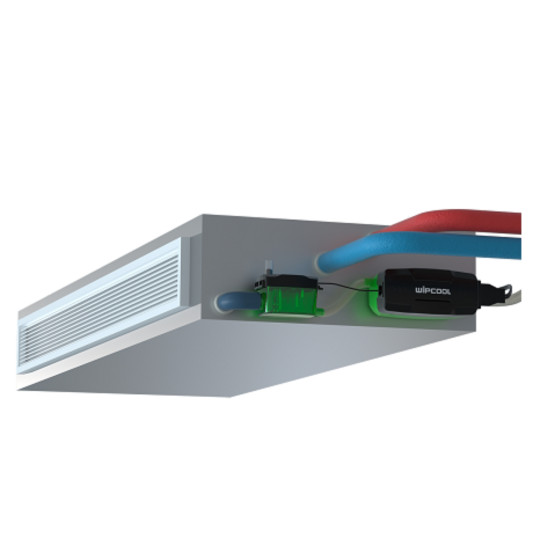

The "maxi P32" split-type condensate pump is designed for installation in ducted units, behind wall-mounted indoor air conditioning systems, above suspended ceilings where feasible, inside decorative plastic trunking, etc.

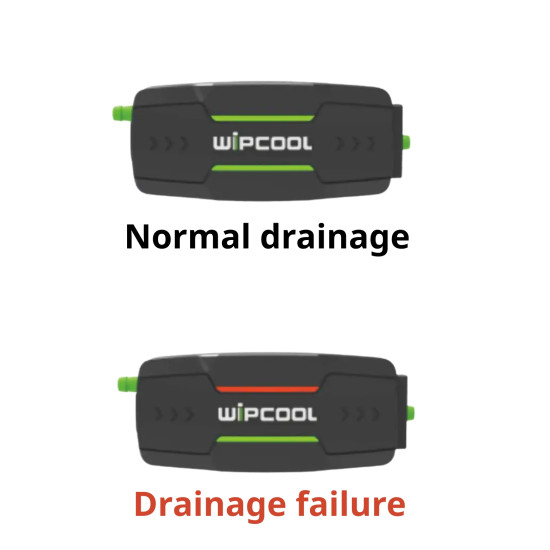

The P32 is specially engineered with an integrated 3-wire safety switch, features a slim design, smart & easy wiring, a reservoir with 3-sensor technology, and LED status indicators, making it WIPCOOL’s most advanced condensate pump. Suitable for devices with cooling capacities up to 45,000 BTU/hr.

It includes a built-in alarm function (via dry contact safety switch) and vibration reduction technology, ensuring the pump operates quietly over long periods while safely draining condensate.

Specifications:

• Power supply: 100V-230V~ / 50-60Hz.
• Alarm contact (dry contact): N.O, N.C 8A resistive.
• Maximum recommended head (vertical height): 10m (33ft) → ~14 L/h.
• Maximum suction distance: 2m (6.5ft).
• Sensor reservoir capacity: 35ml.
• Maximum water flow rate (at 0 head): ~32 L/h → (see manual, e.g. at 6m head ~22 L/h).
• Sound level at 1m: 21 dB(A).
• Maximum water temperature: 30°C.
• CE marked.

Alarm wire connections:

• Red = Common.
• Purple = Normally Closed (NC).
• Green = Normally Open (NO).
