ANTIVIBRATION - SM1000.2 (2 Springs) "ACRTOOLS"

• SUITABLE FOR LOW-FREQUENCY VIBRATION CONTROL
• ADJUSTABLE HEIGHT AND MACHINE ALIGNMENT
• PROTECTION FROM LATERAL DISPLACEMENT
• INTERNAL ELASTIC GASKET FOR REDUCTION OF RESONANCE
• STEEL CASING FOR GREATER STRENGTH

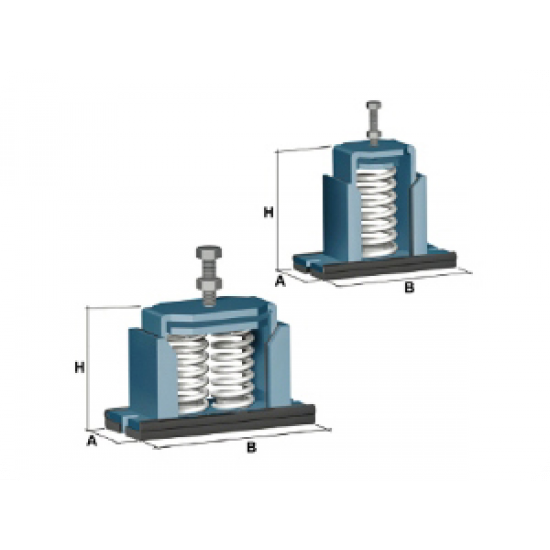

ACR-SM TYPE 1
Antivibration mounts ACR-SM are used for low frequency vibration control (rotational machinery 300 RPM upwards).
The casing is made of steel with adequate thickness and is protected from oxidation with a special anticorrosive paint.
The antivibration springs comply with ISO.EN.10270 standards and have a color indication to define the maximum load capacity.
An adjustable height system exists, in order to align the machine.

ACR-SM TYPE 2
At their base they have a special elastic profile, resistant to outdoor conditions, thus offering better isolation efficiency at high frequencies.
Antivibration mounts ACR-SM have been designed to face lateral forces (earthquake and wind-pressure protection).
An elastic gasket is interceded between the two vertical reinforcements, to avoid creating a sound-bridge. Also through the friction that is developed, the phenomenon of resonance is decreased, during the beginning and the end of the machine operation.
ACR-SM can be combined at the bottom with an elastic pad, named ACR-EP, to ensure the control of vibration at a wider range of frequencies (ACR-SM Complex).
