Supermarket Condensate Pump P120S WIPCOOL

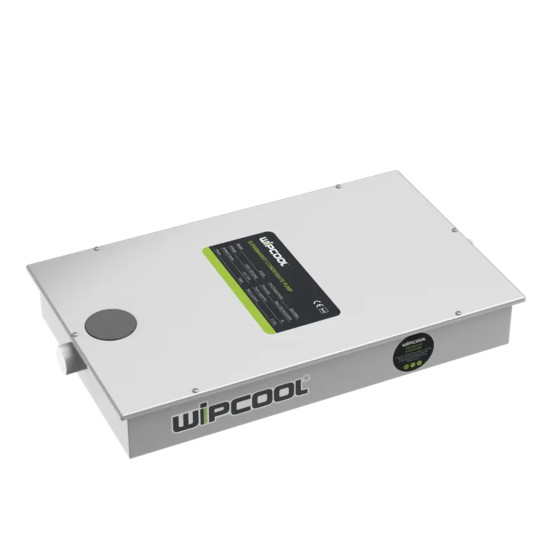

Condensate Drain Pump P120S (Inox Refrigerator Tank) by WIPCOOL.

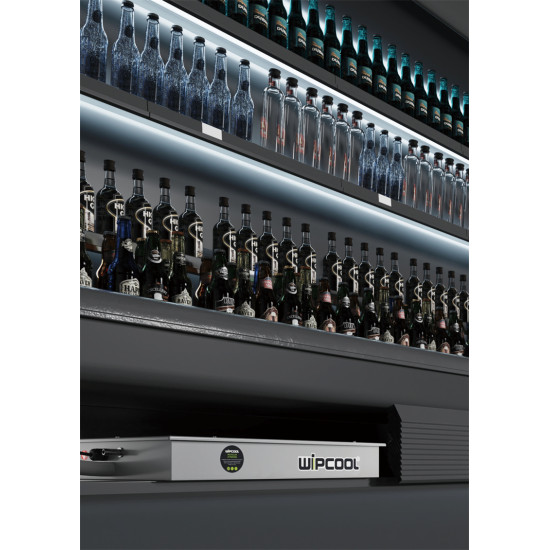

The “P120S tray-type condensate pump – inox version” is designed for installation under commercial refrigerators, where defrost water from the evaporator flows naturally into its tank. Ideal for professional food-related businesses without a pre-installed drainage system, such as supermarkets, butcher shops, greengrocers, fish markets, cafés, etc.

The P120S features an ultra-low profile (just 7 cm in height), making it suitable for tight spaces under refrigeration units or wherever space is limited. It is robustly built from durable stainless steel (inox), filters impurities from the condensate water (use of antifungal and antibacterial tablets in the tank is recommended), and is extremely easy to maintain.

It incorporates dual-sensor technology in the tank, a built-in non-return valve, two condensate inlets (Ø50 & Ø32 – top and side), and a visual LED status indicator (red = power on, green = pump operating), making it highly functional and user-friendly.

Suitable for all professional applications where condensate flows naturally into the tank.

• Power Supply: 230V~ / 50–60Hz, 30W

• Alarm Contact (dry): NC 8A resistive

• Maximum Recommended Head (vertical height): 30 m (98 ft) → ~90 L/h

• Maximum Suction Distance from Unit: –

• Sensor Tank Capacity: 3 L

• Maximum Water Flow (at 0 head): ~120 L/h → (see manual, e.g. at 15 m head ~110 L/h)

• Sound Level at 1 m: 40–62 dB(A)

• Maximum Water Temperature: 75°C

• Dimensions: 70 mm (H) x 286 mm (W) x 463 mm (L)

• Outlet Size: Ø10 mm

• CE Marked

Alarm wire connections:

• Black = Common

• Black = NC (Normally Closed)
