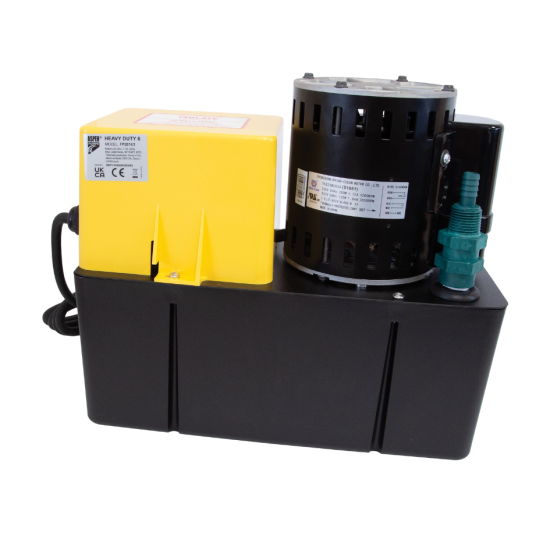

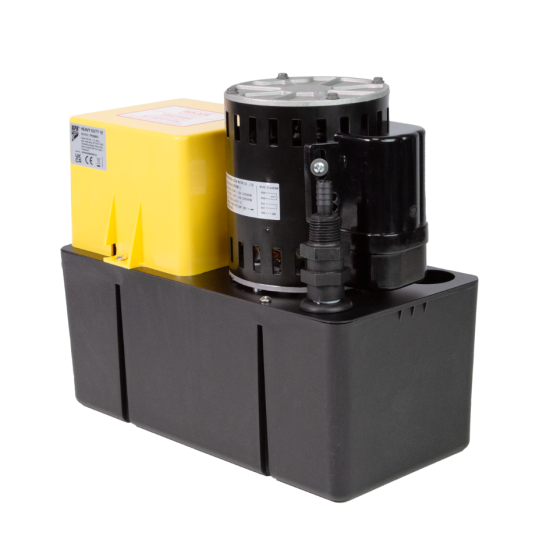

HEAVY DUTY CONDENSATE PUMP 6m ASPEN

The Heavy Duty condensate removal pump is designed for high-demand HVAC systems, handling large condensate loads with quiet, reliable operation. Built to withstand the toughest commercial and industrial environments. These pumps are easy to install and combines power, reliability and durability.

  • High flow rate

  • Non return valve

  • Easy installation

  • 4 litre tank capacity

  • High level safety switch

  • HD6: Up to 1200kW / 4m Btu/h

  • HD10: Up to 1460kW / 4.9m Btu/h

  • Dehumidifiers; Air handling units (AHUs)



View the technical brochure here

View the tech manual here

Temperature
Maximum temperature 40C / 104F ( water )
General
Supply 1200kW / 4m Btu/h
Technical
Discharge head 6m L/h max.
Exit point size x2 40mm in
Maximum noise level 60dB(A)
Protection 1PX0
Tank 4L
Water pumping capacity 900L/h
HEAVY DUTY CONDENSATE PUMP 6m ASPEN

Login to see prices

You need to be logged in to see the prices. Log in here!


2102280384 - 2102286268

  • Stock: Out Of Stock
  • Model: 50.17.550
  • Weight: 3.50kg
Products Sold: 0
Due to the large number of products, please consult the last modified date value (located under the product price) for the validity of the price of each product. By placing your order we will call you to confirm availability and price of products you have ordered.
