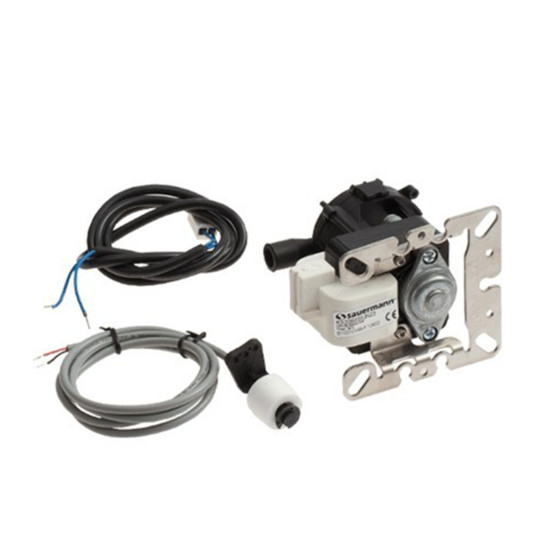

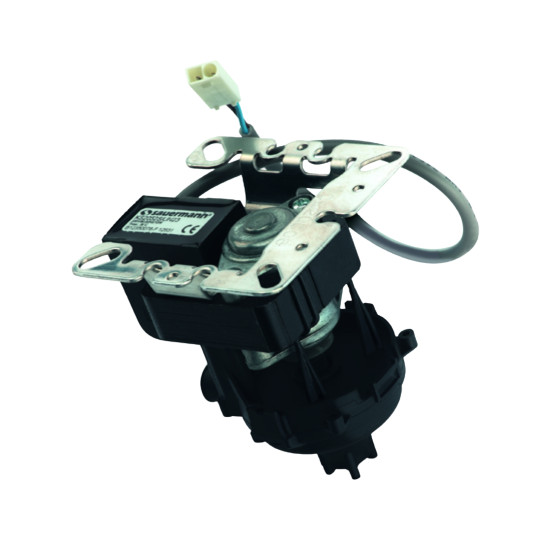

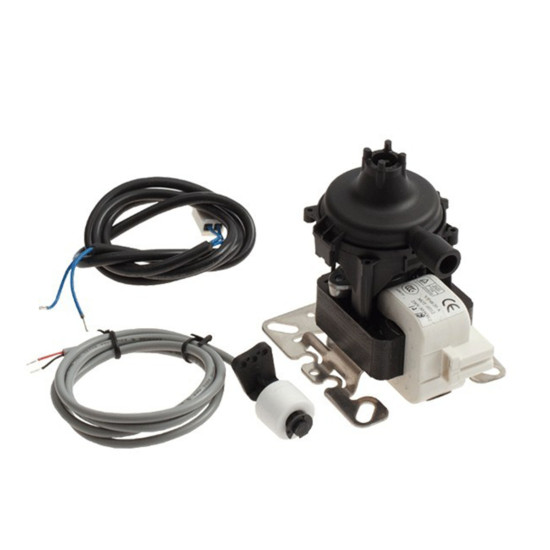

The ACR2052 condensate pump for cassette units by SAUERMANN is suitable for replacement in many of the most popular cassette-type air conditioning models, with a cooling capacity of up to 20 kW.

Built with centrifugal technology, it is specially designed to continuously remove condensates in any environment, while maintaining low noise levels!

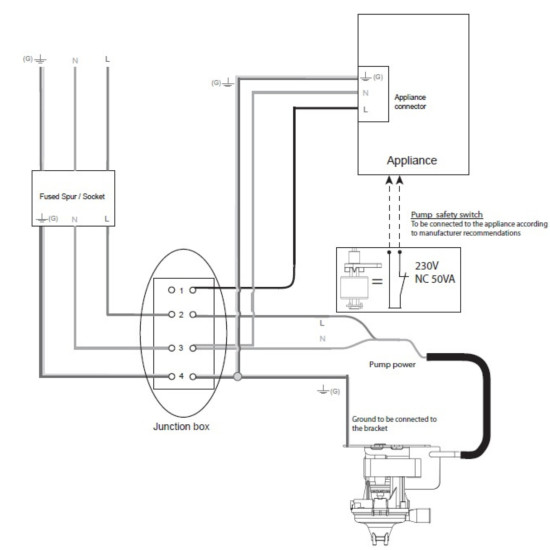

The included float switch can be used as a safety switch (NC) to automatically stop the operation of the compressor or the solenoid valve of the air conditioner.

Among others, it is also suitable for the water-cooled cassette model 42WKC008703-40 by CARRIER.

TECHNICAL DETAILS:

• Max flow rate

  18 gph

  70 l/h

• Max discharge head

  0.9 m

• Insulation class

  Double insulation

• Mains supply

  230V~ 50Hz - 14 W

• Operation conditions

  100%

• Protection

  IPX4

• Master pack quantity

  25

• Safety switch

  NC 50VA resistive - 250v

View the technical datasheet here
