ANTI-SIPHON DEVICE ASPEN

Have you ever faced a pump that siphons?
Maybe your mini pump makes loud noises or starts without water?
Perhaps you have noticed the pump heating up during operation or losing performance.
Most likely, your pump is siphoning...!

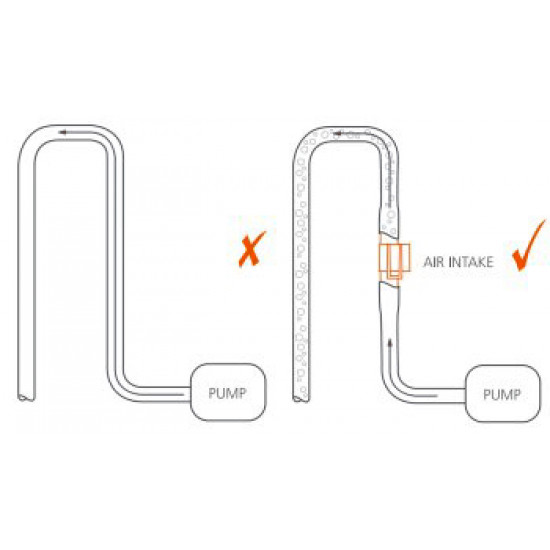

Siphoning in a mini pump installation occurs when a discharge pipe has a rise followed by a steep drop along the line. Any water below the tank level, under the effect of gravity, pulls the remaining water through the pump.

Siphoning can cause serious damage to a mini pump, as the pump may run dry for a period, resulting in premature wear, increased noise levels, and ultimately pump failure. Any mini pump can be prone to this problem.

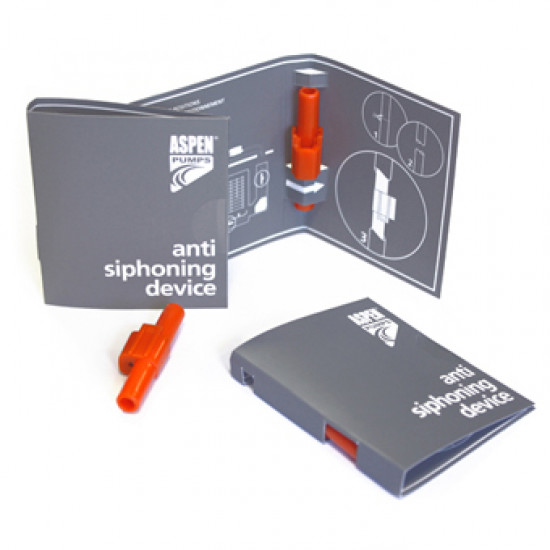

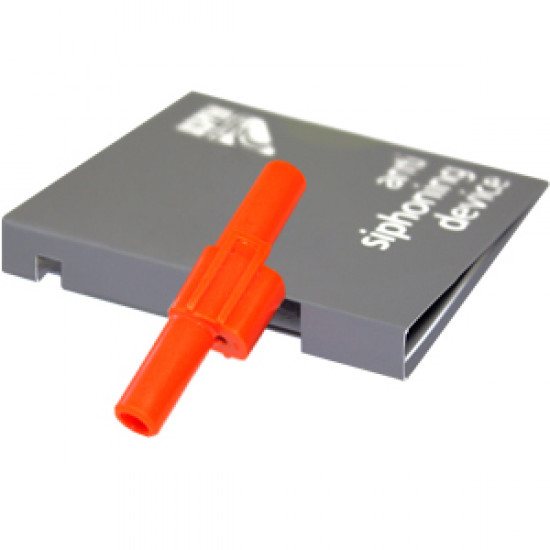

After extensive research, Aspen has developed a revolutionary anti-siphoning device to prevent pumps from siphoning.

This unique device provides the best possible solution to a problem that many installers regularly face.

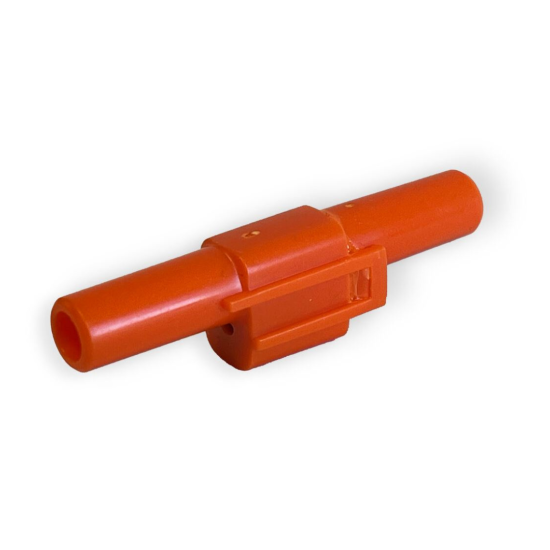

Connects to internal diameter Ø 6 mm / internal diameter Ø ¼” piping.

• Suitable for 6mm (1/4”) PVC tubes

• Prevents pumps from siphoning and emptying itself, reservoir, and connecting hose, eliminating excessive noise, ineffective operation, and overheating

• Installs into the discharge hose in seconds

• Omni-directional design allows either horizontal or vertical fitting with no change in operation

• All connections must be secured with cable ties

View the tech manual here
