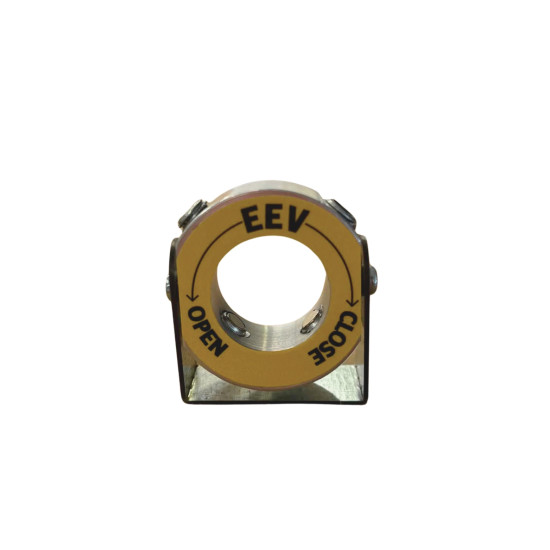

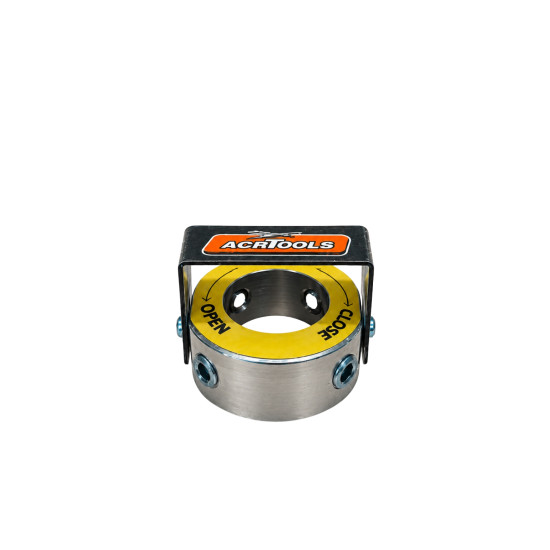

ACR-EEV Magnetic Inspection Coil ACRTOOLS

Quality components by ACRTOOLS!

The need for technicians to test the opening and closing response of an electronic expansion valve led us to offer the ultimate solution: the ACR-EEV Magnetic Testing Coil by ACRTOOLS.

Featuring a unique all-in-one design, this coil can be used with all electronic expansion valves having a head diameter of up to 24 mm, eliminating the need to purchase separate coils for different valve head sizes.

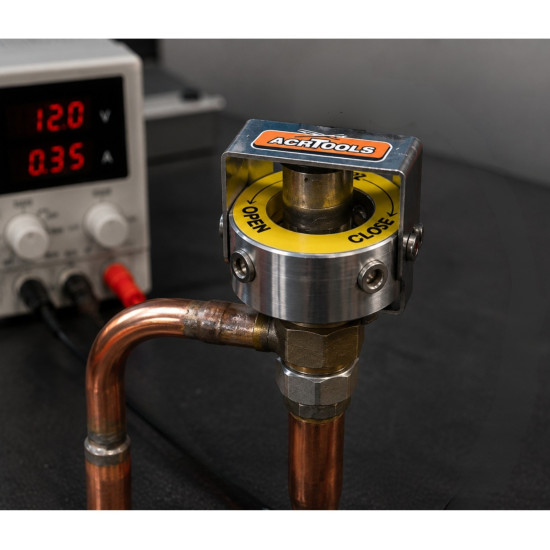

Manufactured from high-quality stainless steel, it meets the growing market demand for a fast and reliable method of testing electronic expansion valves. The adjustable head diameter accommodates valve sizes Ø15 mm, Ø17 mm, Ø22 mm, and up to Ø24 mm, allowing technicians to quickly verify whether a valve responds correctly to opening and closing commands when the coil is applied.

The ACR-EEV provides a practical solution for testing a wide range of electronic expansion valves, making troubleshooting and diagnostics easier and more efficient.

One test is enough to convince even the most demanding technician!

Specifications:

• Outer Diameter: 41 mm
• Height: 16 mm
• Inner Hole Diameter: 24 mm
