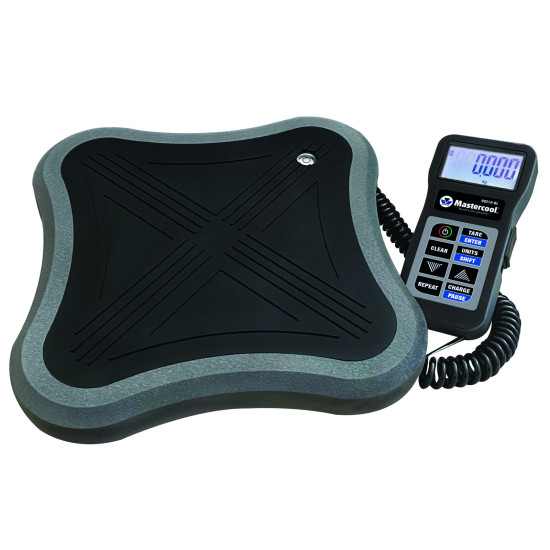

98210-BL BLACK SERIES ELECTRONIC CHARGING SCALE WITH BLUETOOTH® WIRELESS TECHNOLOGY MASTERCOOL USA

The Ultimate Device for Charging and Recovering of Refrigerant.

Mastercool’s electronic charging scale with Bluetooth® wireless technology features an extra-large LCD display for easy reading from any angle and features three display modes (kgs, lbs, oz). With a high capacity of up to 243 lbs (110 kgs) it is easily one of the best on the market. Included in this package will be the capability to download our free Mastercool Connect app. This will allow for full mobility as activity can be easily viewed on all compatible hand-held smart devices.

Durable and Portable.

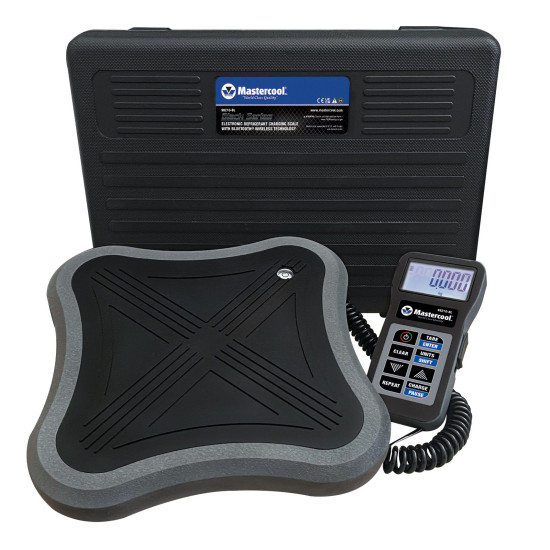

Strong aluminum base with a rugged, non-slip platform provides extra durability while working in any environment. The included compact and heavy-duty carrying case allows for easy portability to any job site.

Manufactured for Performance.

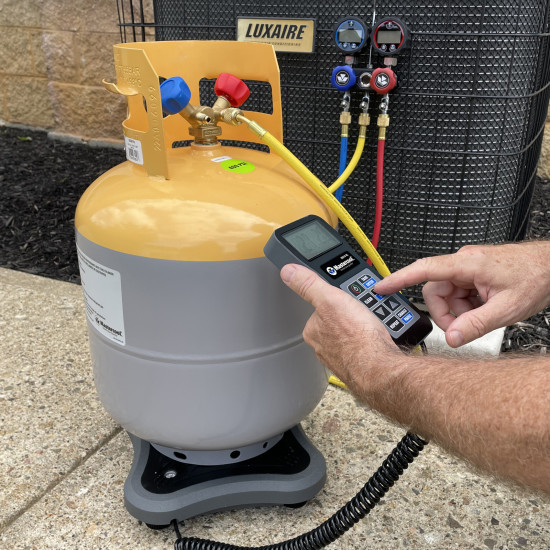

The large rugged, non-slip platform provides for easy weighing of refrigerant tanks with an accuracy of ≤±0.05% of reading.

FUNCTIONS:

• CHARGE PROGRAMMING: Allows user to program desired quantities. Before charge is complete, an alarm will sound allowing ample time to turn off refrigerant supply
• PAUSE/CHARGE (Using the 98230 Charging Solenoid Module): This feature allows user to stop and continue charging
• TANK CAPACITY PROGRAMMING: EMPTY/FULL tank feature allows user to know the amount of refrigerant in the tank at any time
• REPEAT: Allows user to charge previously stored amount

SPECIFICATIONS:

• 243 lbs (110 kg capacity)
• Accuracy: ≤±0.05% of reading
• Resolution: 0.05 lb / 0.5 oz / 0.01 kg
• Automatic shut-off: 3 hours
• Operating temperature: 32 to 120˚F (0 to 49˚C)
• Battery life: approximately 38 hours
• Rugged, non-slip platform
• Specifications for Bluetooth® wireless technology:
  260’ (80m) maximum line-of-sight range
  Bluetooth® 4.2 and 5

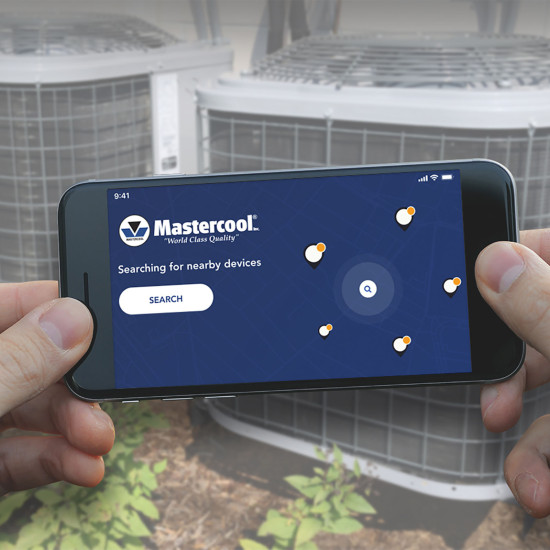

The Mastercool Connect app is used exclusively with Mastercool’s Bluetooth® capable HVAC and automotive service tools and equipment. This app provides full mobility for our Bluetooth® enabled products as live activity can be easily viewed on all compatible hand-held smart devices. The Mastercool Connect App requires iOS versions 11 or later and Android versions 6 or later. Simply download the free Mastercool Connect app to begin receiving and analyzing data from any nearby Mastercool enabled Bluetooth® device.

View the instructions for use here

View the technical brochure here
