Joints kit ACR-FQ01-UNA ACRTOOLS

Accessories specially designed and manufactured for VRF systems (multi-split with variable refrigerant flow), capable of supporting a total indoor unit capacity of up to 112 kW (and a single outdoor unit capacity of up to 29 kW). Each piece is equipped with multi-diameter ends that can be cut to the desired size during installation, allowing the pipe to be inserted inside before brazing.

These multi-diameter joints are made of high-quality pure copper and individually tested at 50 bar pressure. The multi-diameter ends can be adapted with a simple cut to all commonly used sizes up to 1 1/8" (28 mm) for gas lines and 1/4" (6 mm) for liquid lines (depending on model). High-quality construction at economical prices.

Contact us for a full catalogue of models and dimensions.

Suitable for R410/407/22, as well as R134a, 404a, and others.

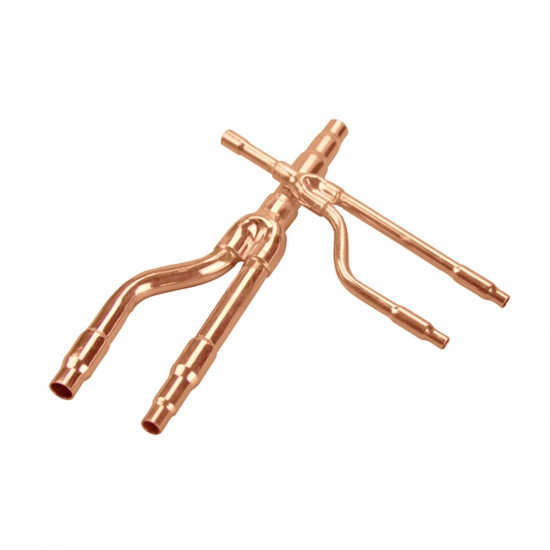

The kit includes 1 joint for the liquid (High) line and 1 joint for the gas (Low) line (insulation not included).

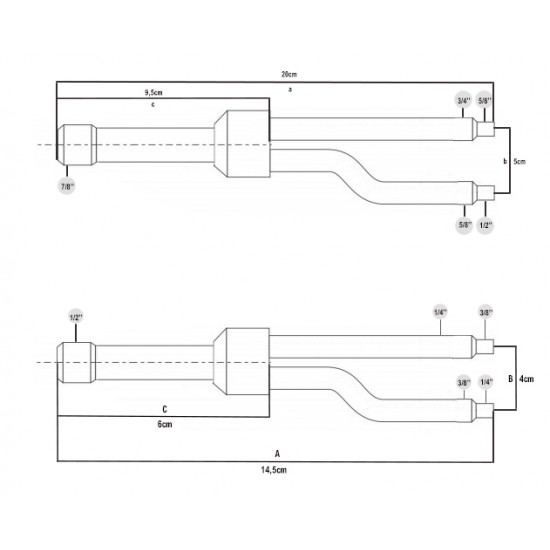

Dimensions – LIQUID (High) side

• A = 14.5 cm
• B = 4 cm
• C = 6 cm

Dimensions – GAS (Low) side

• A = 20 cm
• B = 5 cm
• C = 9.5 cm
