DBM 620 Air Flow Meter SAUERMANN

The newly redesigned Kimo DBM 620 Air Flow Meter is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings from air vents.

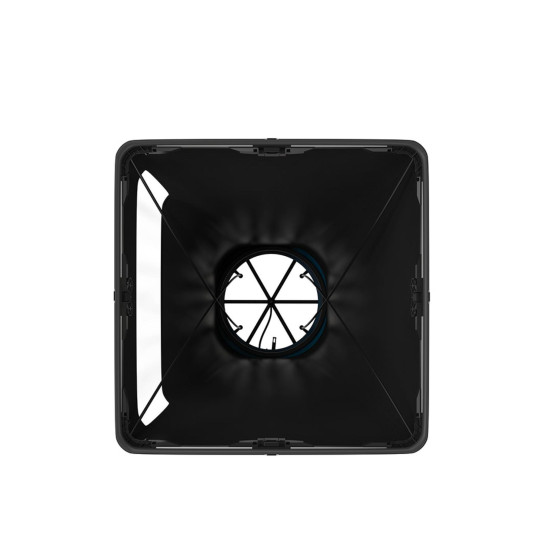

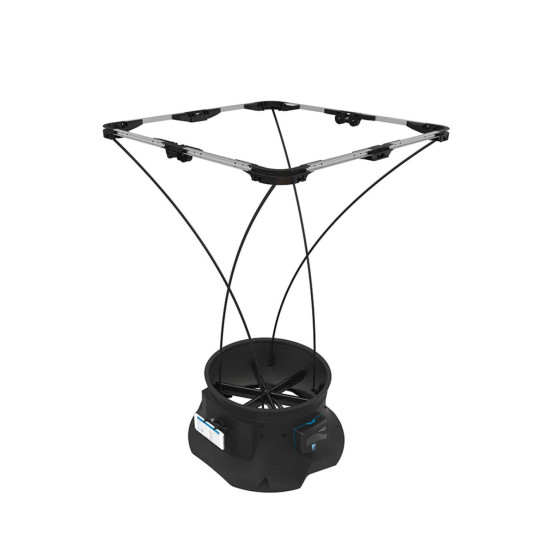

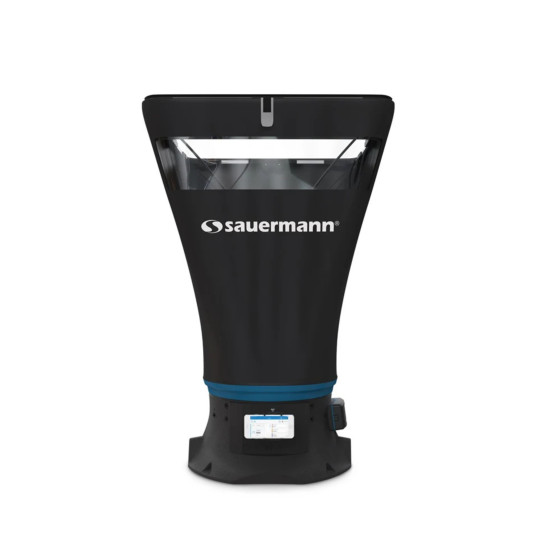

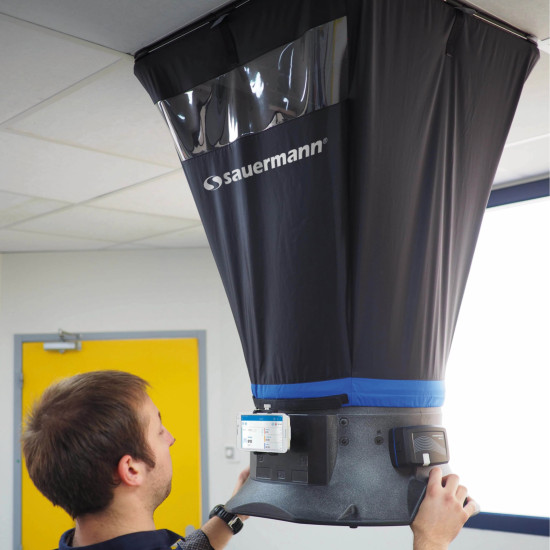

The Sauermann DBM 620 balometer has been designed for the measurement of air volume from ceiling diffusers and grilles.  Supplied in the standard configuration with a 610 x 610 mm hood and collapsible space saving frame with built in flow straighteners, and a compact storage case.  The DBM 620 measuring unit communicates with smartphone or tablet devices via Bluetooth using the free easy to use SmartKap mobile App available from Google Play or Apple App store for the display and reporting of measurement data.

Features:

Measuring range: 35 to 4250 m³/h.
Supplied with: Samsung Galaxy Tab A 10.1 preloaded with SmartKap mobile App for remote data collection when the equipment is installed on the optional tripod assembly. For normal use, a personal smartphone is recommended.
Display: Simultaneous display of 4 selectable parameters from airflow, air velocity, relative humidity, barometric pressure, temperature, and differential pressure.
Units of measure:

• Velocity – m/s, fpm, km/h, mph
• Volume – m³/h, l/s, cfm
• Pressure – Pa, mmH₂O, mmHg, inWg
• Atmospheric pressure – hPa, mbar
  Functions: HOLD, ACR (Air Change Rate), automatic averaging or point-by-point averaging.

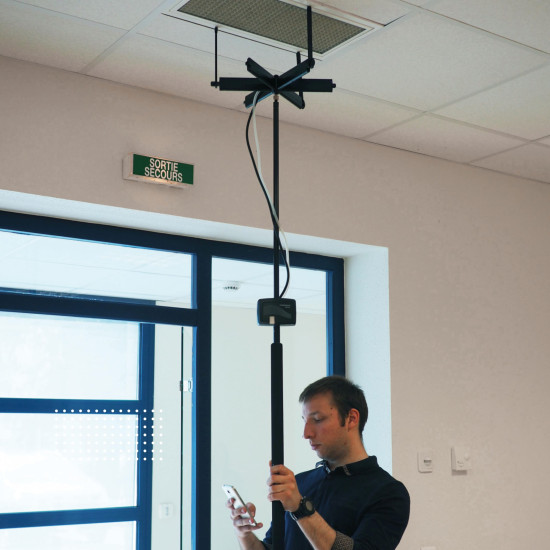

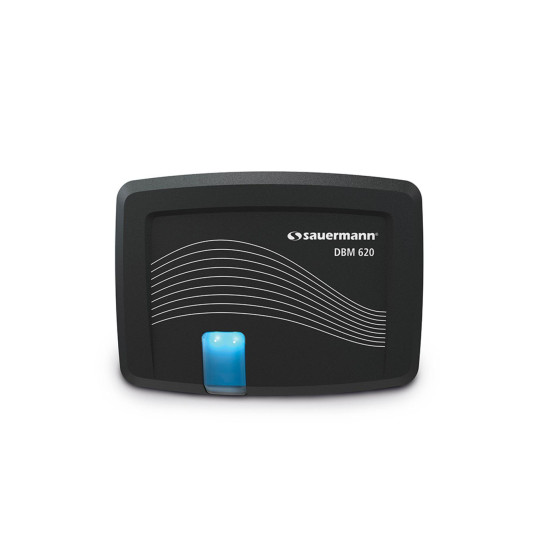

  Removable measuring (pressure) unit for stand-alone use with the measurement grid.

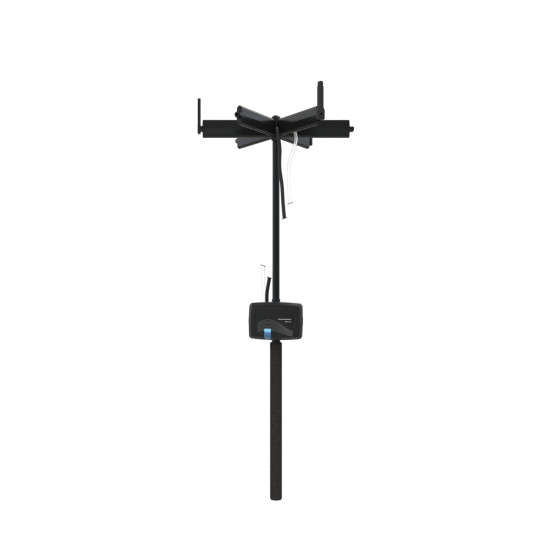

  Optional accessories: Hood sizes – 720×720 mm, 720×1320 mm, 420×1520 mm, 1020×1020 mm; extendable tripod with castors for use with DBM620 and measurement grid.
  Air Changes per Hour (ACPH) metric – first of its kind included in a Balometer.

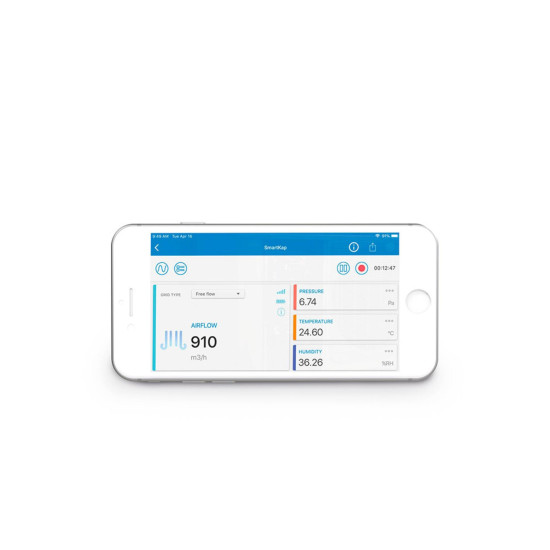

  SmartKap App allows easy reading and export of data.
  Other features: Lighter and smaller than previous models; extendable tripod eliminates the need for ladders in most environments.
