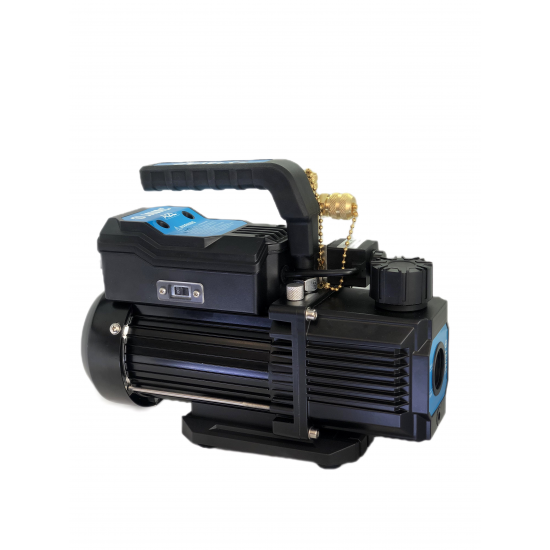

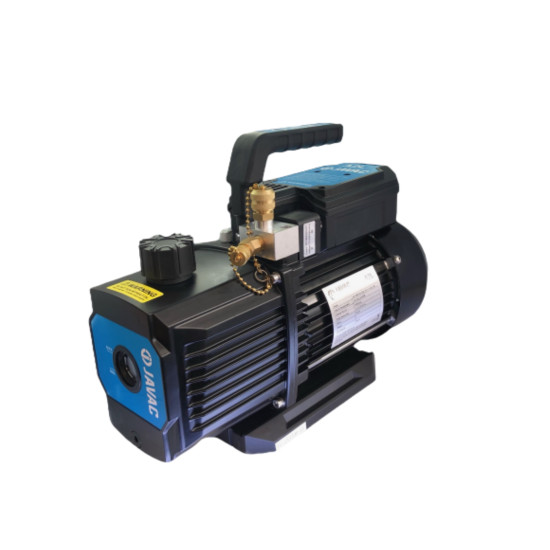

CC-231-A2L DUAL STAGE VACUUM PUMP 2/3HP 9CFM 2stages 251lt/min JAVAC

From JAVAC, Australia's leading tool manufacturer in the refrigeration and air conditioning industry for over 55 years, offering high-quality vacuum pumps with specialized features that ensure the perfect balance of price, quality, and ease of use!

TECHNICAL SPECIFICATIONS:

• Model: CC-231-A2L with built-in magnetic switch

• Application: Ideal for vacuum evacuation in refrigeration, air conditioning, and heat pump systems

• Refrigerant Compatibility: Suitable for all refrigerants, including A2L (equipped with explosion-proof switches)

• Power Supply: Dual voltage, 110V - 240V / 50Hz

• Motor Power: 2/3HP

• Flow Rate: 251 lt/min – 8.9 CFM

• Stages: 2-stage vacuum down to 15 microns

• Oil Capacity: 620 ml

• Oil Fill Cap: Double-seal design to prevent leaks

• Inlet Ports: 1/4" & 3/8" SAE

• Dimensions: 380mm (L) x 160mm (W) x 285mm (H)

• Weight: 14.8 kg

From JAVAC Australia, the most trusted name in HVAC tools for over five decades, delivering smart, efficient, and reliable solutions at professional prices — with performance that truly excites!

View the technical brochure here
