Pressure Temperature Compound Gauge PTC900 Appion USA

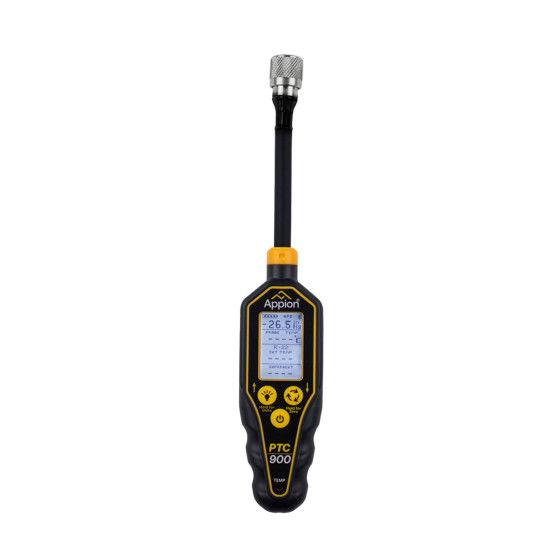

Combined Digital Pressure and Temperature Smart Probe PTC900: Easy & Accurate Monitoring.

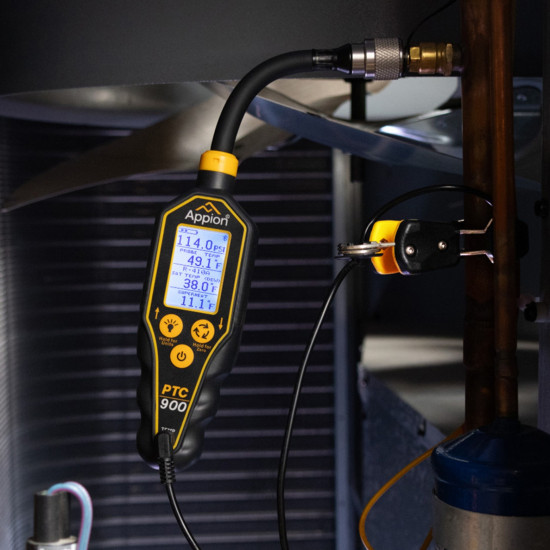

Appion USA presents the Combined Digital Pressure and Temperature Smart Probe PTC900 – your essential tool for precise measurements and remote monitoring in AC/R systems. With advanced features and intuitive controls, the PTC900 simplifies complex HVACR diagnostics and ensures you complete your work efficiently and effectively.

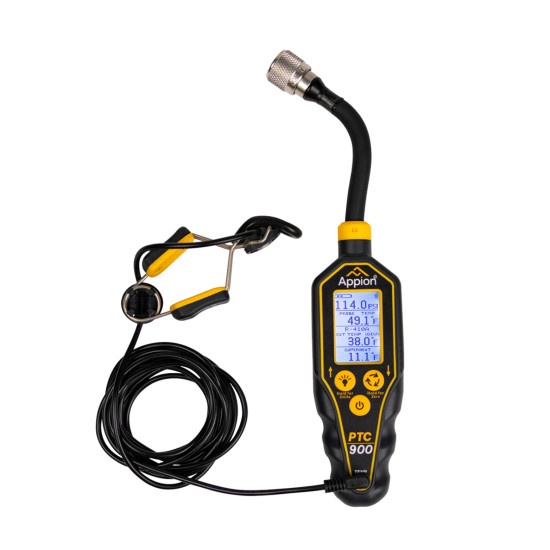

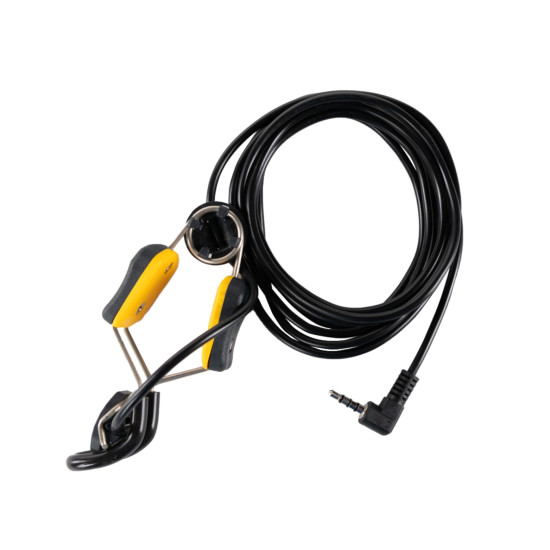

The temperature clamp sensor can accommodate pipe diameters from 1/8" to 1 5/8". Additionally, the clamp temperature sensor can be detached and secured with a zip tie to much larger pipes. The sensor’s minimal thermal mass and thermal insulation from its housing allow it to respond quickly to temperature changes in all environments.

Connect the PTC900 to the Appion Central™ app for seamless Bluetooth connectivity. This integration enables real-time remote viewing, live data logging, and more. Multiple simultaneous remote measurements are supported. The Appion Central™ app allows for real-time remote monitoring of all digital measurement instruments.

• Model: PTC900

• Pressure Measurement Units: psi, in/Hg, cm/Hg, bar, kPa, MPa

• Temperature Measurement Units: °C (Celsius), °F (Fahrenheit)

• Pressure Resolution: 5 psi, 0.4 in/Hg, 0.03 kg/cm², 0.1 cm/Hg, 0.034 bar, 3 kPa, 0.003 MPa

• Temperature Resolution: 0.1 °C, 0.1 °F

• Pressure Accuracy: ≤ 0.06% of full scale

• Power Supply: 2 x AA batteries

• Battery Life: 220 hours (Bluetooth OFF), 175 hours (Bluetooth ON)

• Connection Type: 1/4" Female Flare

• Dimensions: 265 mm (L) x 48.2 mm (W) x 25.4 mm (Thickness)

• Weight: 151 g

• Ingress Protection: IP55

• Auto Shut-off: After 15 minutes – Selectable ON/OFF

• Bluetooth Range: 300 m (1000 ft) line of sight
