BASIC 250 Fan NOVOVENT

Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

Description

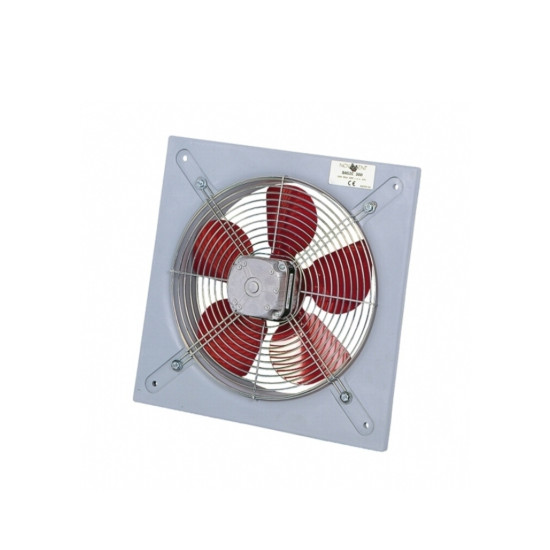

BASIC 250 Fan NOVOVENT

The BASIC 250 EC is a wall-mounted axial fan designed for efficient ventilation in commercial and industrial applications. It features stamped aluminum impellers and a reinforced polyamide casing with fiberglass strengthening, specifically engineered for wall installation. The series is equipped with high-efficiency brushless EC motors, suitable for speed control via a 0–10 V input signal.

Features:

Direct-drive axial fan.
Epoxy-coated metal impellers.
Fiberglass-reinforced polyamide casing.
Epoxy-coated protective grille.
Single-phase motor, IP65 protection rating.
Insulation Class B.
Airflow direction: Motor to impeller.
High-efficiency brushless EC motors.
Compatible with 0–10 V control signal.

Technical Specifications

Parameter	Unit	BASIC 250 EC
Maximum Airflow	m³/h	760.76
Maximum Static Pressure	Pa	37.10

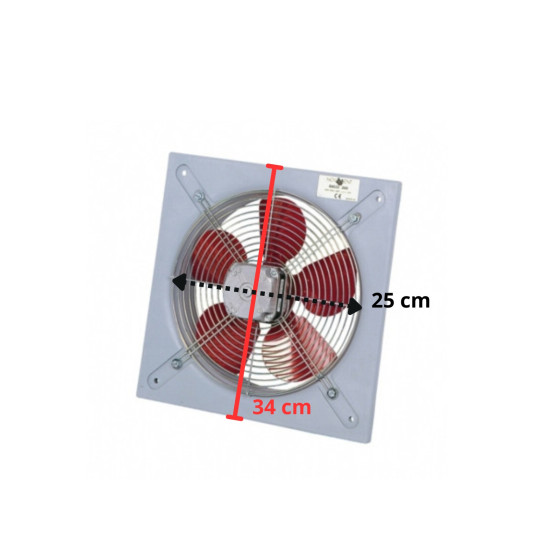

Diameter	mm	250
Hub Diameter	mm	90.00
Hub Ratio	-	0.36
Pitch Angle	°	26
Number of Blades	-	5
Balancing	-	Q6.3 Dynamically Balanced
Impeller Material	-	Epoxy-Coated Galvanized Steel (RAL 3020)
Casing Material	-	PA6.6 Polyamide (RAL 7001)

Motor Technical Data

Parameter	Unit	BASIC 250 EC
Mechanical Power	kW	0.02
Power Supply	Hz	1~ / 50–60
Number of Poles	-	4
Rated Speed	rpm	1,220
Rated Current	A	0.15

View the manual here

BASIC 250 Fan NOVOVENT

Login to see prices

You need to be logged in to see the prices. Log in here!

2102280384 - 2102286268

Stock: In Stock
Model: 01.13.050
Weight: 2.62kg
